High-quality Custom Paint Line Spray Booth

High-quality Custom Paint Line Spray Booth

Jiangsu Jingzhongjing Industrial Painting Equipment Co., Ltd. (Jiangsu, since 2007), which covers 120,000 m2 with 328 staff, specializes in manufacturing custom spray paint booths and commercial paint booths for sale. Our main products include: paint spray booths, paint lines, shot blasting equipment, degree metal pre-treatment systems, and various large painting lines featuring UV light, RCO, RTO, and VOC environmental protection equipment. We also produce foldable field camping cabins. We focus on producing for big projects and new product development, with an annual output of up to 2000 sets of equipment.

Types of Paint Spray Booth for Sale

Vehicle Painting Line Equipment

Our customer-made painting line is based on customer requirements. Workshop space. Produce capacity. Contact us if you have requirements; we can design to completely fill your requirements.
View Details

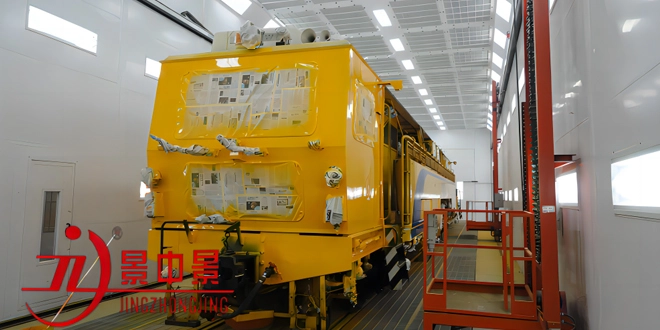

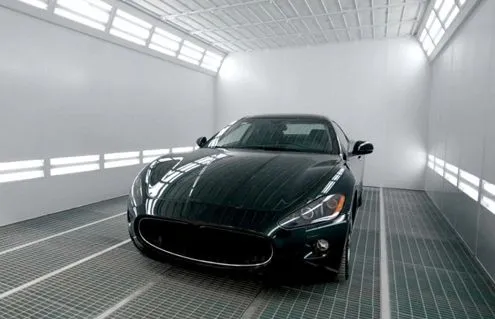

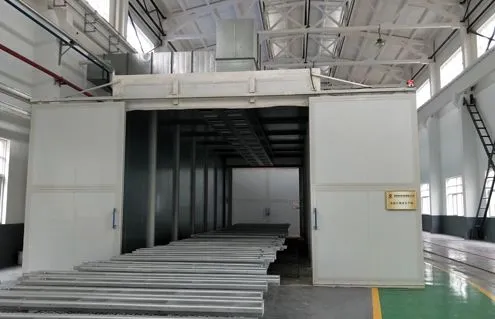

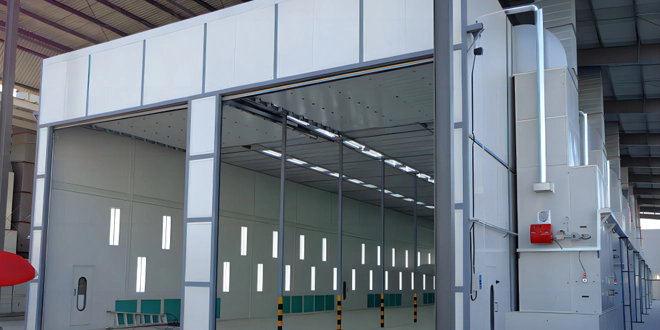

Paint/Spray Booths

This type of large paint booth is suitable for buses, trucks, or any other vehicle you desire. If you would like further information, don't hesitate to get in touch with us. We can even customize the booth to your specifications.
View Details

Military Paint Booth

Vehicle Paint in Military Factory CE TUV Surface Coating Vehicle Paint Line System.
View Details

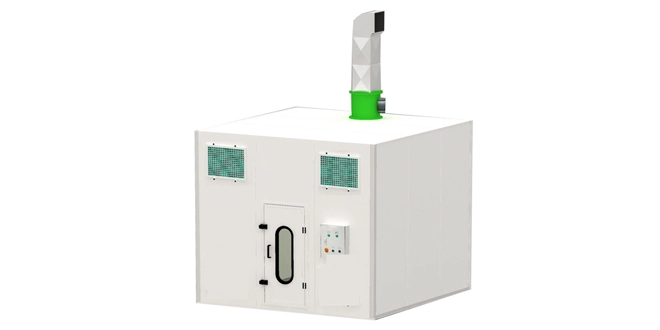

Portable Spray Booth

This car spray booth is made of container style. It can move to other places easily after simple installation. We can accept different kinds of customized Spray Booth for car or any other industry workpiece.
View Details

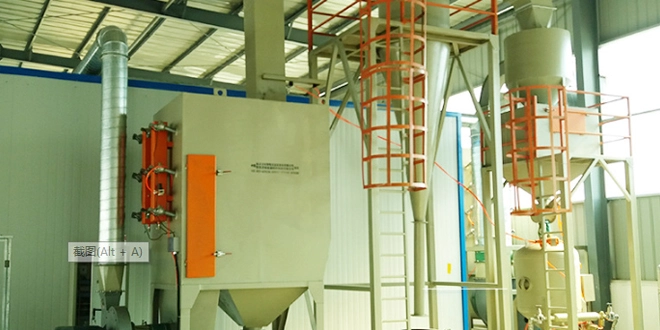

Blasting Room

We supply top-tech and high-performance sand blasting booths for customers. Sand blasting room mainly consists of: shot peening room, shot storage hopper, belt conveyor, bucket elevator, shot separator, sand blasting machine, dust removing system, PLC electric control system, maintenance system, grille and escalator, sand recovery system, etc.
View Details

Paint Mixing Room

JZJ paint-mixing room, provides an excellent environment for mixing paint, please do not hesitate to contact with JZJ spray booth factory to get customized paint-mixing rooms.
View Details

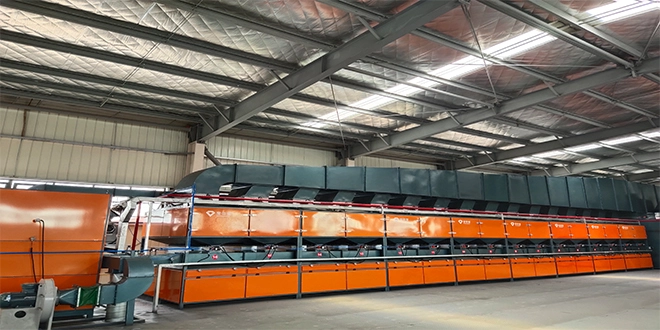

Exhaust Treatment System

Customized Coating Production Line Carbon Voc Organic Waste Gas Treatment Purification Equipment.
View Details

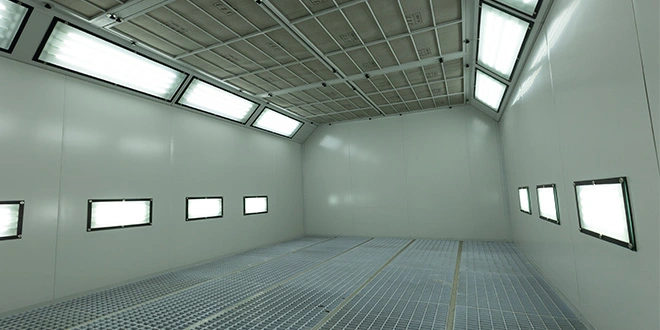

Spray Booth Consumables

The filters are used for spray booth. It can get good discount if buy together with our spray booth. Put into the container and load with spray booth in the empty space can get free shipping.
View Details

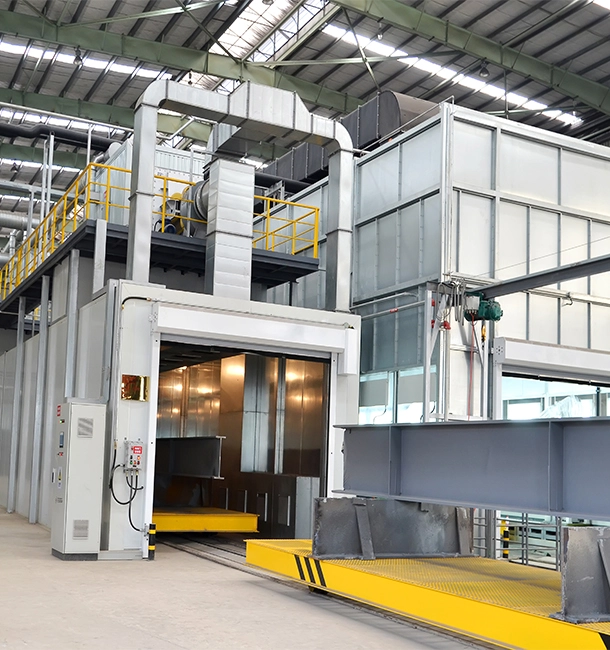

How Do I Maintain My Paint Booth?

How Do I Maintain My Paint Booth?

Maintaining your paint booth is crucial for ensuring optimal performance and safety. Regular maintenance includes several key tasks:

By adhering to these maintenance practices, you can extend the lifespan of your paint booth, ensure high-quality finishes, and maintain a safe working environment.

  • Changing Filters: Replace filters as needed to maintain proper airflow and filtration. This helps in capturing overspray and contaminants, ensuring a clean painting environment.

  • Cleaning the Interior: Regularly clean the booth interior to remove overspray buildup. This prevents contamination of new paint jobs and maintains a professional finish.

  • Inspecting Ventilation: Regularly inspect and maintain the ventilation system to ensure it is functioning correctly. Proper ventilation is essential for removing hazardous fumes and maintaining air quality.

  • Checking Electrical Components: Routinely check electrical components for wear and tear.

Ensure all connections are secure and that there are no signs of damage or corrosion. This helps in preventing electrical failures and potential fire hazards.


Customize Service

Why Choose Our Paint Booth/Paint Production Line?

Request A Quote

OEM

STEP 1

ODM

STEP 2

Quality

STEP 3

Professional

STEP 4
What Safety Precautions Should I Take When Using Paint Spray Booths?

What Safety Precautions Should I Take When Using Paint Spray Booths?

When using paint spray booths, prioritize safety by wearing appropriate personal protective equipment (PPE) such as respirators, gloves, goggles, and coveralls. Ensure proper ventilation to avoid inhaling fumes. Follow manufacturer guidelines for equipment operation and maintenance. Keep fire extinguishers nearby and eliminate ignition sources, as many paints are flammable. Regularly inspect hoses and connections for leaks. Ground equipment to prevent static discharge. Lastly, receive proper training and adhere to workplace safety protocols to minimize risks.

Paint Line Spray Booth Custom Solutions

System Features
System Features

The paint booth provides an excellent working environment. In order to maintain clean air, the paint baking booth is equipped with filtering devices such as filter cotton, which can effectively filter dust in the air. A good ventilation system ensures continuous air renewal and avoids the impact of environmental pollution on the paint surface.


Work efficiency is another important advantage. The paint booth adopts mechanized operation, which significantly improves the speed compared to manual labor. The air during the painting process is filtered and purified through multiple stages, ensuring a cleanliness of over 98%, thereby ensuring the quality of painting. The paint surface is smooth and uniform, with extremely high polishing degree.

Airflow Design
Airflow Design

Spray booth airflow design is an important element of any spray booth, so it’s one of the first things finishing operators need to consider when upgrading to a new booth.


While there are only a handful of options when selecting a type of booth, each one carries a unique set of advantages and possible drawbacks. Spray booth ventilation design impacts every aspect of a booth’s operation, so companies should carefully weigh how their chosen airflow design will affect operating costs, quality of results, and workplace safety.

How to Design the Perfect Spray Booth

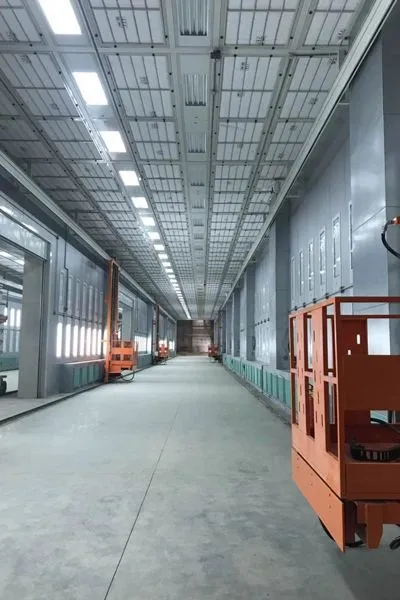

01 Design Basis of the Paint Baking Room
01 Design Basis of the Paint Baking Room

The paint booth mainly consists of a spray painting area and a paint painting area. When designing, it is important to consider the spray painting effect's perfection, heat transfer efficiency, safety, as well as the treatment of paint mist and exhaust gas.

The paint baking room's design basis includes determining external and internal dimensions, selecting heating methods (such as far-infrared electric heating, fuel heating, gas heating, etc.), setting the highest temperature, the operation method (spray baking combined), and the mist treatment method (dry treatment).

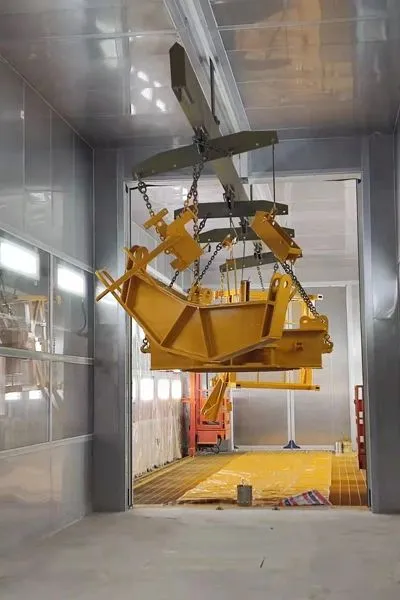

02 Design and Construction of a Paint Booth
02 Design and Construction of a Paint Booth

The design and construction of a paint booth need to consider the following points:

Guarantee of Spray Painting Effect: Use low-noise and high-volume fans to ensure the perfect spray painting quality.

High-quality stainless steel heat exchangers enhance heat exchange efficiency and prolong their service life.

Safe and environmentally friendly: We strictly design and implement the equipment in accordance with relevant national standards for labor safety, health, and environment, ensuring safe operation and reducing environmental pollution.

Easy to operate and maintain: The design should consider both the convenience of operation and the ease of later maintenance.

Energy Saving and Efficiency: Adopting efficient and energy-saving technologies and materials to improve production efficiency and reduce energy consumption.

Get in Touch with Paint Booth/Paint Line Supplier
Get in Touch with Paint Booth/Paint Line Supplier

We are looking forward to working with you!

If you have any product inquiry, custom paint booth need, please feel free to contact us.
