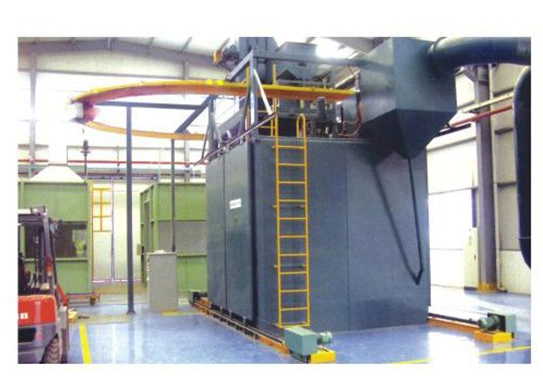

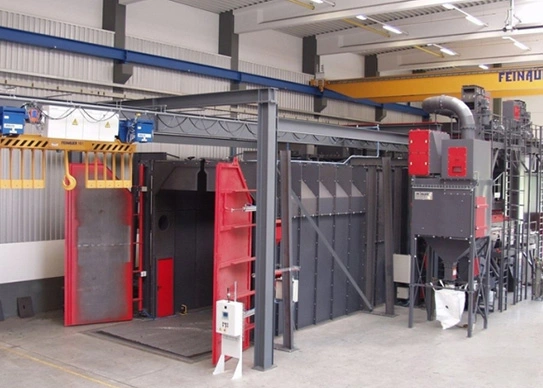

Shot blasting room is a kind of equipment for shot blasting treatment, is mainly used for metal surface treatment, such as removal of oxide, rust, to improve the quality and adhesion of metal surface. shot blasting chamber is designed and constructed for effective shot blasting, its internal structure and external design are for the best treatment results. shot blasting room is usually welded by steel plate, has high strength without vibration, to ensure the stability and safety of processing.
| Main Door | 1. Manual revorve, 2500*2300mm(w*r1), all around use powdered gaivanized steel cover, door left 50mm thickness, width 1150mm, inside and outside 0.476mm colorful steel plate, inside fill EPS; | |
| 2. Door leaf ceiling equip movement wheel, bottom equip guide wheel, inside door flat press3mm rubber protection. | ||
| 3. Equip square tempered observation glass window, have manual revolve protection device. | ||
| QTY | 1set | |
| Emergency Door | 800*2000mm(W*H) | |
| Cabin System | Cabin body use 100 square tube steel frame structure as main framework, sub-framework 50*25 square tube lap joint steel structure, inside whole flat. | |
| Wall panel | 75mm thick, wide 1150mm, inside and outside 0.426mm colorful steel plate, fill rockwool; | |
| Cover | Galvanized steel sheet bended. | |
| Protection | Whole inside wall flat use 5mm white wear-resisting rubber and use flat iron and body framework press into gridding type. | |
| Abrasive circulatory system | Using mechanical transmission principle, the use of horizontal screw conveyor force will material recycling to the bottom of the elevator, again through the elevator to the sand dustseparator separation, separation of useful sand material automatically fall into storage container, waiting to be involved in the next cycle of sandblasting. Dust particles into the sand dust | |
| absorption are discharged after adsorption filter cartridge, cartridge pulse regularly cleaned the dust concentration emissions. | ||
| Emission concentration<80 mg/ m². Hopper use 16 Mn, floor thickness 5 mm. Overall the whole grid layout. | ||
| The whole room dust removal system | Entire room dust removal system with pulse dust removal system, dust exhausting pipe, suction inlet, dust exhausting fan. dust exhausting funnel parts. Dust particles by dust into the dust | |
| removal pipe into the dust collector are discharged after adsorption filter cartridge, cartridge pulse regularly cleaned the dust concentration of emissions.Emission concentration<80 mg/m². | ||
| Sand-blasting machine | Sand blast model: KPBS-2R1990 | QTY: 1SET(independent control) |
| Volume | 1m² | |
| Abrasive valve | Imported USA CLEMCO | |
| Spray Gun | 2pcs | |
| Barrel length | 18m | |
| Gun MUZZLE diameter | 10dia(high quality boron carbide material) | |
| Abrasive diameter | 0.4-0.8 dia cast steel shot or water chestnut steel sand | |
| Clean speed | 15-25m² per gun | |
| Compressed air gas consumption | 6.5m²/min(0.4-7.5Mpa) per gun | |
| Sand blast protection suit | 2sets | |
| Thermoregulation helmet | 2sets | |
| Control mode: infrared ray wireless remote | 2sets | |
| Exhaust system duct | Exhaust duct steel plate, flange made by professional equipment. Cabin body have several exhaust. Each one equip manual damper. | |
| Ceiling air supplement system | Ceiling equip outside air inlet. it can let whole sand blasting booth air draft exhaust system become exterior supply state. | |

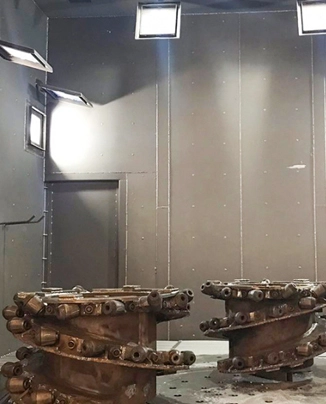

| Lighting System | Sand blasting booth inside illuminance≥300LUX. Considering steel sand splashing will damage for lamps and lanterns, it design the lamps outside, through tempered glass shine inside. Equip 3 rows 9pcs 400w halogen lamp on the roof. | |
| Workpiece conveying system | Customer provide | |
| Control System | Cabinet type push button centralized control: electrical system is mainly composed of electric cabinet. PLC. circuit breaker. ac contactor, thermal relay, etc. Equipped with lighting switch, emergency stop switch, fault alarm, etc. | |
| Total power | 32Kw(not including convey and air supply) | |
| Equipment total gas consumption | 14m²/min(6pcs gun use together) | |
Durable Construction: Built with high-strength steel panels to withstand the impact of abrasive materials, ensuring long-lasting performance and minimal maintenance.
Efficient Dust Collection: Equipped with advanced dust extraction systems to maintain a clean environment and improve visibility during operations.
Automated Controls: Integrated with user-friendly control panels for precise regulation of blasting parameters, enhancing productivity and consistency.
Safety Measures: Includes safety interlocks and emergency stop buttons to protect operators from potential hazards during the blasting process.
