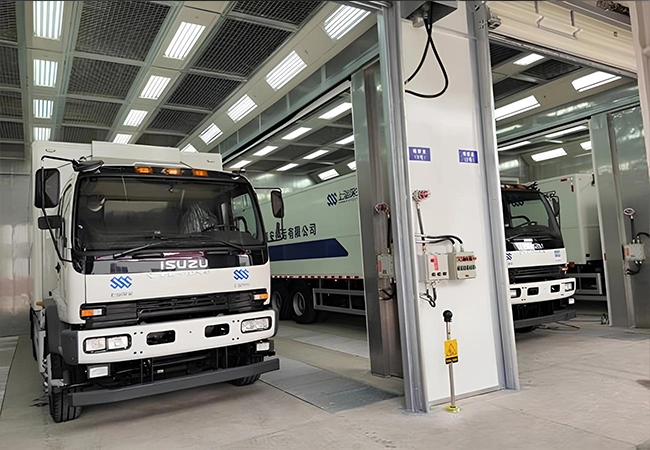

Automotive Paint Line

The automotive painting process can be generally divided into two major parts: one is the surface treatment of the metal before painting, also known as pre-treatment technology; the second is the construction process of painting. Surface treatment mainly includes the removal of oil, dust, rust, and corrosion on the surface of the workpiece, as well as the removal of the old paint layer when carrying out repair work, etc., in order to improve the surface condition of the workpiece. It includes the mechanical processing and chemical treatment of the surface of the workpiece according to various specific conditions. The same is true for car painting line, but the two major classifications of painting equipment, painting production lines, and processes have obvious differences and can be specifically divided into:

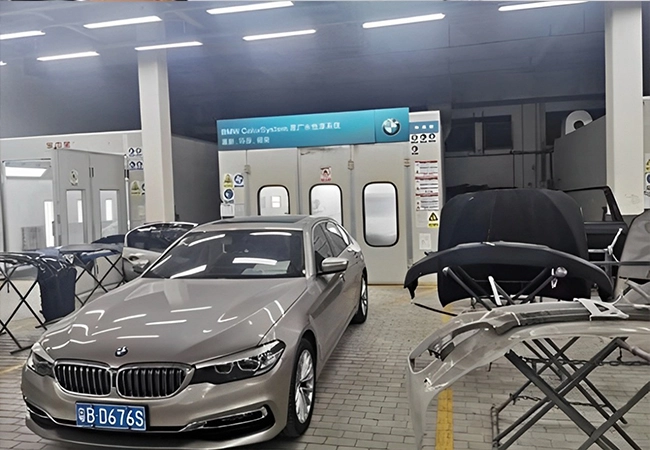

1. Vehicle body' painting parts for: the body, front and rear bumpers, bonnets, and other front parts; coating production line is usually used: the swim dip oil removal, rust removal, and other pre-treatment processes and robotic spraying, rail line conveyor, and baking combined in the same production line;

2. Inside and outside accessories’ painting refers to parts: function buttons, navigators, door handles, and other commonly known rear parts.


Automotive Paint Line Specification


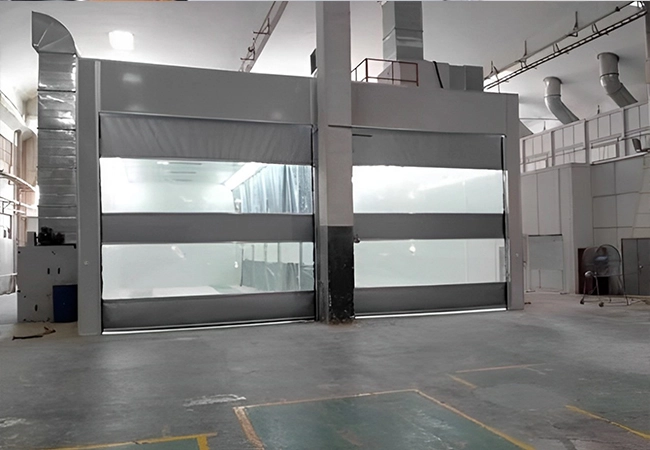

Automotive Paint Line

Outside Dimension (mm)

7006*5710*3420(L*W*H)

Inside Dimension(mm)

6900*4000*2650(L*W*H)

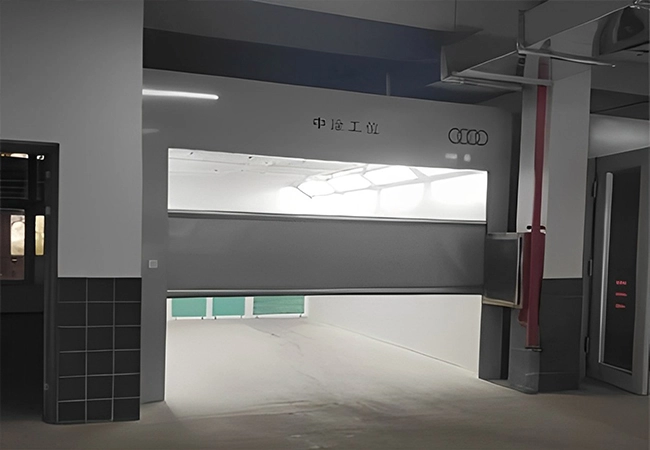

Front Door(mm)

3000*2600(W*H)

Service Door (mm)

800*2000(W*H)

Total Power

17KW

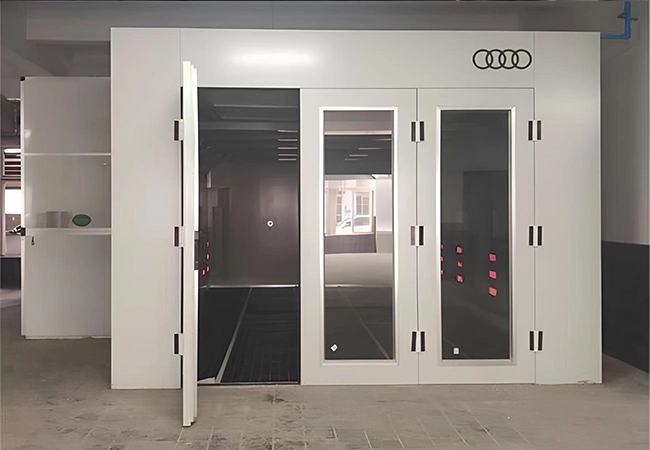

Cabin System

Wall panel

50mm rock-wool sandwich panel, double face steel sheet thickness: 0.6mm

Ceiling panel

Galvanized steel sheet.

Basement

300mm depth, middle with grids, side with checkered plates.

Ramp

Three pieces 2000*900mm ramps

Glass

5mm safety tempered glass

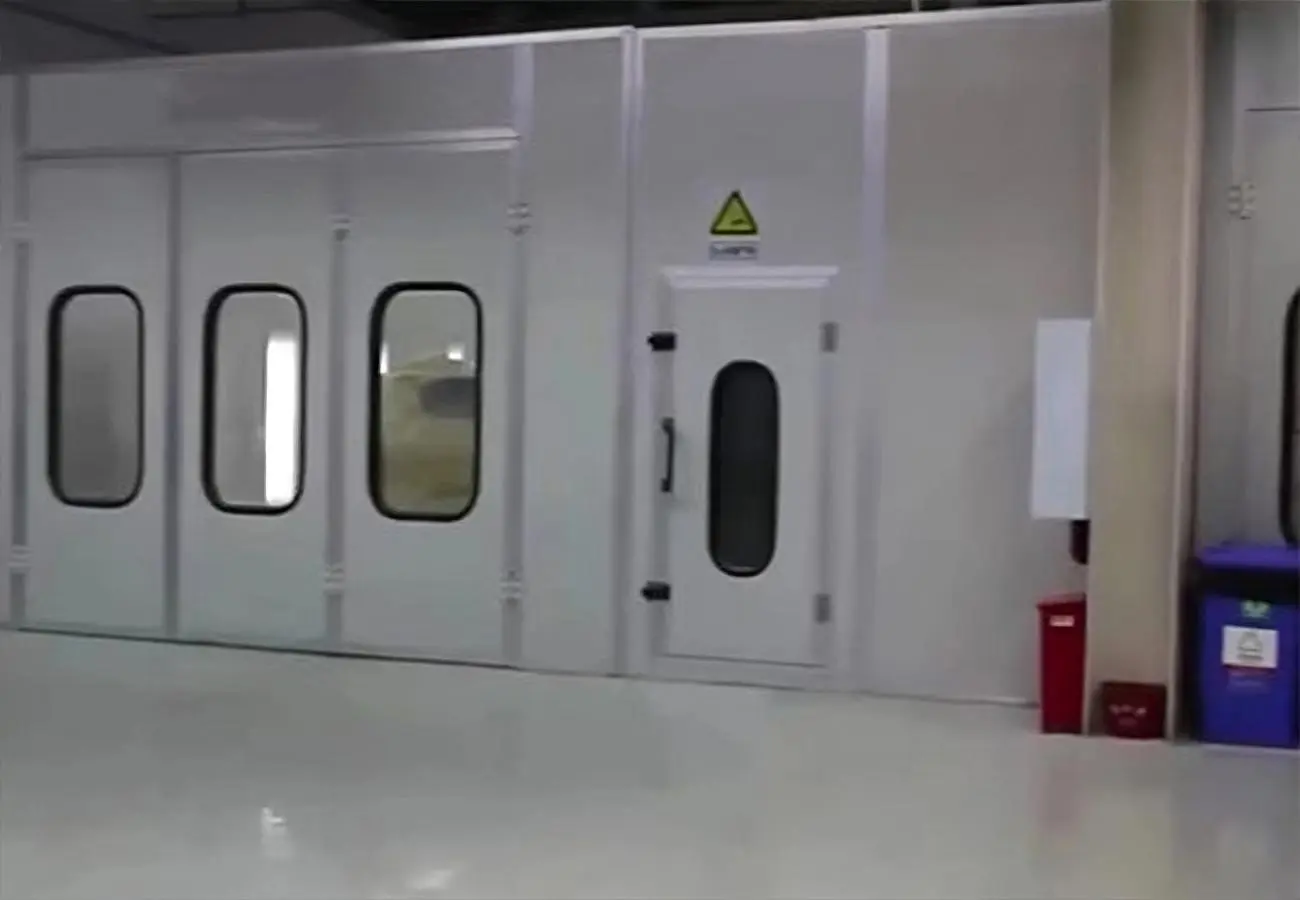

Windows

Square glass windows.

Air Make-up System

Air inlet fan system

1*7.5kw turbo fan, ABB/Siemens motor

Exhausted fan system

1*7.5kw turbo fan, ABB/Siemens motor

Air capacity

25000m3/h

Air control method

Air inlet system and exhausted system, each with 1 manual damper

Air ducting

8 meters air duct, one flop damper and one weather hood

Purification System

Pre-filter

G3 grade, Pocket filter

Ceiling filter

EU5 / F5

Floor filter

Green fiber glass filter / G3 grade

Exhausted fan filters

Pocket filter and active carbon

Heating System

Heat exchanger

SUS304 material, argon arc welding.

Heating burner

Riello G20 diesel burner

Heating productivity

180000Kcal/h

Spray to baking switch

20N BELLIMO brand Electrical Damper

Chimney ducting

3 meters stainless ducting and one chimney cap

Max heating temperature

80℃

Heating time

4-6min(20-60℃)

Fuel consumption

5-6L/vehicle

Lighting System

Ceiling lights

10 Units, each 4 * 18W LED lamps. Total 720 W

Side lights

8 Units, each 2 * 18W LED lamps, Total 288W

Illumination

1000LUX

Controlling System

Switched control panel

Spraying & baking switch, before baking flash-off, after baking flash off, lighting switch, emergency stop, breakdown alarm,

failure alarm


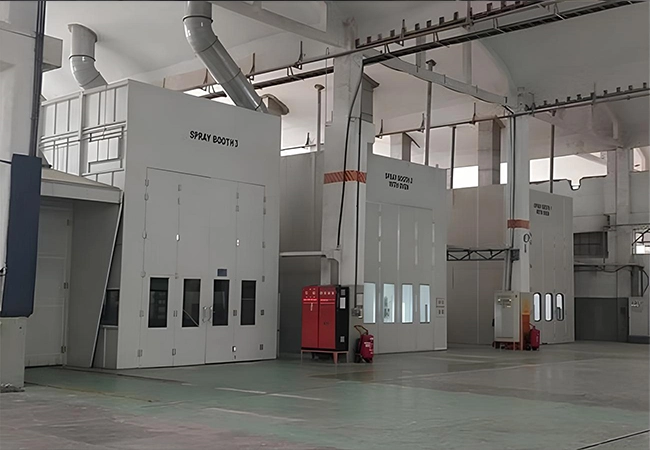

Automotive Paint Line Other Details


  1. Product Description:

    Auto Painting Production Line: Automatic Paint Liquid Spraying Line for Cars.

  2. Maint Process:

    workpiece paint pre-treatment—cathodic electrodeposition primer coating—PVC glue—weld seam sealing—middle coating—surface coating and drying—check and repair process—and complete coating of paint material—products inspection work.
