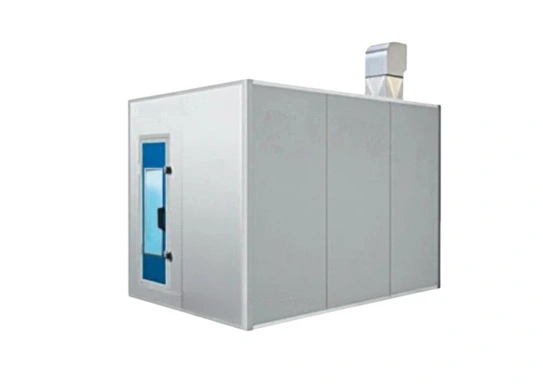

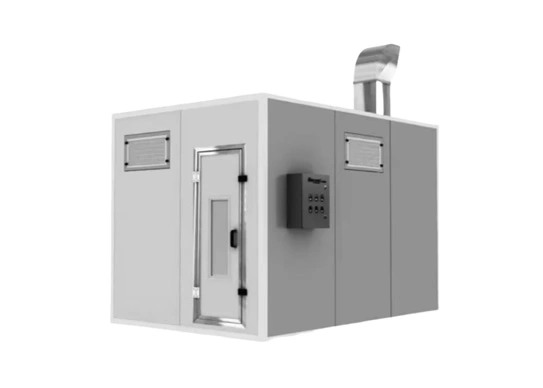

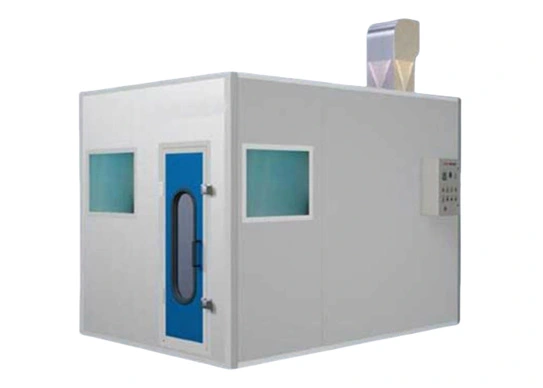

Paint Mixing Room

Paint mixing room is a professional place for painting automobiles, machinery and equipment. The paint mixing room must be equipped with a good ventilation system to ensure the circulation of air and the discharge of harmful gases.The ventilation system should be kept in good working condition and cleaned and maintained regularly to prevent the accumulation of harmful gases. Before using the paint mixing room, the operator should wear appropriate protective equipment, such as dust mask,anti-chemical glasses,work clothes, etc.and ensure that these equipment is regularly changed and cleaned. In short, the design standards of the paint mixing room should take into account safety, ventilation, environmental protection,lighting,Temperature and humidity and other aspects to maximize work efficiency and work safety.


Specification of Paint Mixing Room


Paint Mixing Room

Inside Dimension

3000×2500×2450 mm(L×W ×H)

Outside Dimension

3106×2553×2500mm(L×W×H)

Service Door

2000×800(H×W)Equipped with pressure lock and square tempered glass observation

Window, 1 set

Cabin System

Ceiling/wall panel:50mm rock-wool panel, double side steel sheet thickness: 0.426mm;

Edge:Galvanized steel plate bending production

Exhausted Fan

There is a fan at the top of the chamber with built-in activated carbon filter cotton. Axial flow

fan GD30K2-12-NO4 is selected for the fan. The air volume is 3350m³/h and the power is 0.25kw

Duct parameter

The exhaust pipe is composed of high quality galvanized steel plate and flange made of

professional equipment.4 meters straight air pipe, one elbow

filtration system

Primary filter cotton, activated carbon filter cotton

Illumination system

ceiling light:2 groups x 4 =8 LED tubes

Illuminance: ≥600LUX Philips 18w lamp

Control system

Switched control panel:Equipped with lighting switch, fan switch, emergency stop switch, fault

alarm, cumulative time and so on

power supply

380V, 3-phase, 50HZ

total power

0.8KW


Features of Paint Mixing Room


  1. The paint mixing room is equipped with advanced ventilation systems to ensure a safe and clean environment, preventing the accumulation of harmful fumes and particles during the mixing process.

  2. High-precision digital scales and automated dispensers are installed in the paint mixing room, allowing for accurate measurement and consistent blending of paint components to achieve the desired color and quality.

  3. The room features specialized lighting that mimics natural daylight, enabling technicians to accurately assess color consistency and make necessary adjustments to the paint mixture before application.

  4. Safety protocols in the paint mixing room include spill containment systems and fire-resistant materials, ensuring that any accidental spills or fires are quickly managed to minimize risk and maintain a secure workspace.
