Truck painting room is equipment specially used for truck painting operations, providing a dedicated environment for painting operations. In the painting room, an artificial environment suitable for painting operations can be created to create a relatively comfortable and safe working environment for operators. In addition, the truck painting room also involves environmental protection treatment equipment to deal with the harmful exhaust gas generated during the painting process, to ensure that the harmful gas content in the workshop is discharged to meet the national environmental protection requirements. The truck painting room not only provides a professional painting environment and equipment, but also focuses on environmental protection and safety to ensure efficient and safe painting operations.

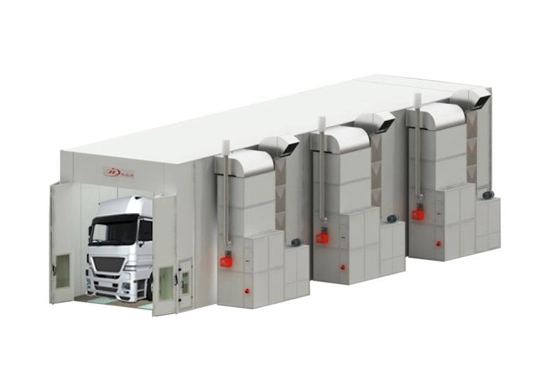

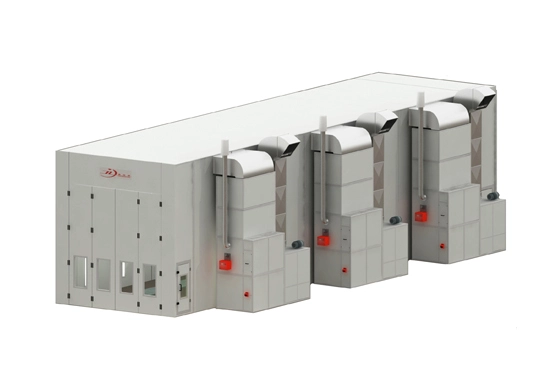

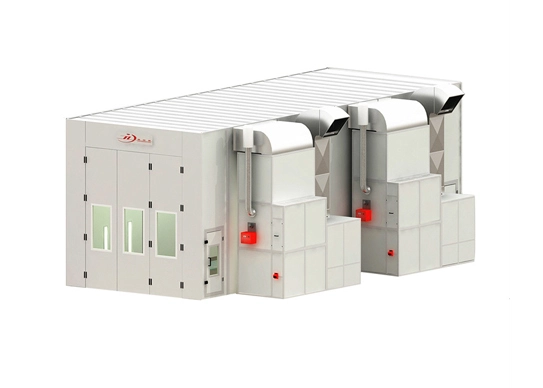

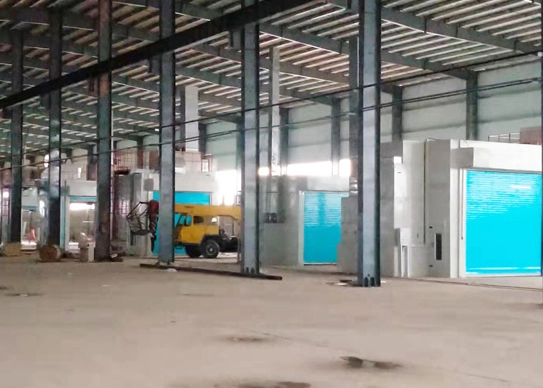

| Truck Spray Booth | ||||
Outside Dimension (mm) | 20156*7006*5800(L*W*H) | Inside Dimension(mm) | 20000*5000*5000(L*W*H) | |
Front Door(mm) | 4800*4500(W*H) 4 folds | Service Door (mm) | 800*2000(W*H)*2 | |
Total Power | 117KW | |||
Cabin System | Wall panel | 75mm EPS sandwich panel, steel sheet thickness: 0.6mm | ||
Ceiling panel | 50mm rock-wool sandwich panel | |||
Basement | Dig 2 row of pits basement | |||
Windows | 5mm safety tempered glass | |||

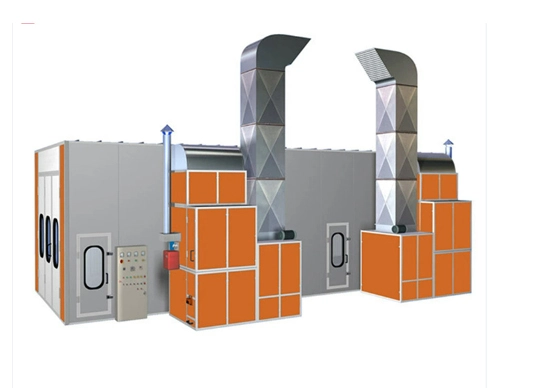

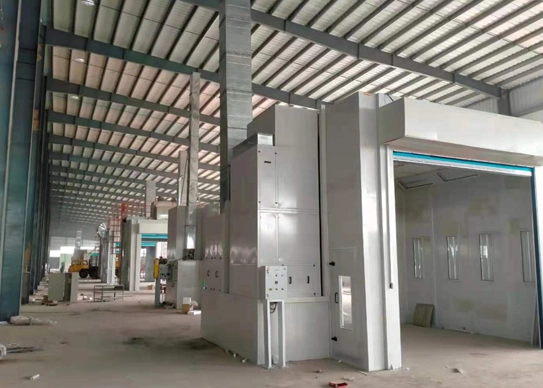

Air Make-up System | Air inlet fan system | 6*9kw centrifugal fan | ||
Exhaust fan system | 3*22kw belt drive centrifugal fan | |||
Total air inlet capacity | 134000m3/h | |||
Total air exhaust capacity | 129000m3/h | |||
Air flowing speed | 0.35m/s in empty booth | |||
Air capacity control | Air inlet system and exhausted system, each with 1 manual damper | |||
Exhaust duct | Each exhaust fan with 1*6 meters straight ducting, one 90°elbow and one 45°elbow. | |||
Purification System | Pre-filter | G3 grade | ||
Ceiling filter | EU5 / F5 | |||
Floor filter | Green fiber glass filter / G3 grade | |||
Exhausted fan filters | Fiber glass filter and active carbon | |||
Heating System | Heat exchanger | SUS304 material, argon arc welding. | ||
Heating burner: | 3sets Riello RG5S diesel burner | |||
Heating productivity | 260000Kcal/h*3 | |||
Spray to baking switch | 20N BELIMO brand electrical damper | |||
Chimney ducting | Each heating system with 1* 6 meters stainless ducting and one chimney elbow | |||
Max heating temperature | 80℃ | |||
Fuel consumption | 10-15L/vehicle | |||

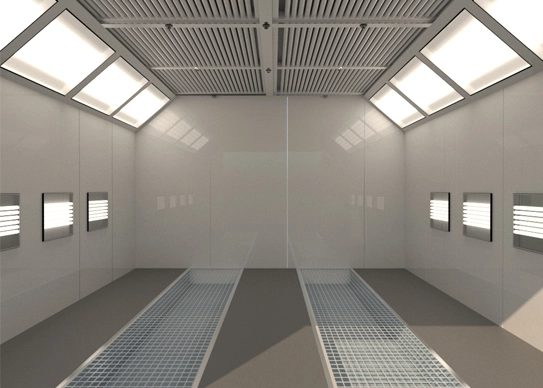

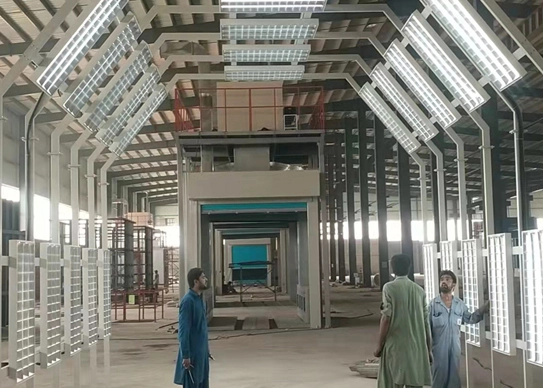

Lighting System | Ceiling lights | 26 Units, each 4 * 18W LED lamps. Total 1872 W | ||
Side lights | 26 Units, each 2 * 18W LED lamps. Total 936 W | |||
Illumination | 900LUX | |||
Controlling System | Switched control panel | Spraying & baking switch, before baking flash-off, after baking flash off, lighting switch, emergency stop, breakdown alarm, failure alarm | ||
Heavy-Duty Construction: Built to handle the size and weight of large trucks, with reinforced flooring and walls.
High-Performance Lighting: Equipped with bright, shadow-free lighting to ensure precise paint application.
Efficient Airflow Management: Designed to provide consistent airflow, reducing overspray and ensuring even paint distribution.
