Car painting room is a kind of equipment specially used for car painting and baking, also known as car painting room. The equipment adopts mechanical control, can save space, is convenient to use, can be forced to dry the primer,top paint,speed up the rhythm of work, improve work efficiency and coating quality. The advantages of car painting room include early processing fast, effect is better, good working environment,high efficiency,quality assurance and high safety factor. Compared with the traditional method of automobile painting, car spray booth not only improves work efficiency and coating quality,also provides a good working environment,reduces the influence of human factors on the quality of paint, ensures the health and safety of operators at the same time. In addition, car spray painting room is also equipped with filter device and ventilation system, to keep the air in the room clean,to prevent external dust and other pollutants to pollute the car paint.

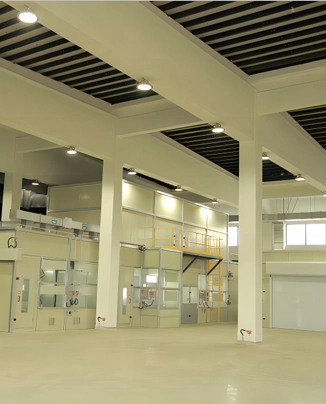

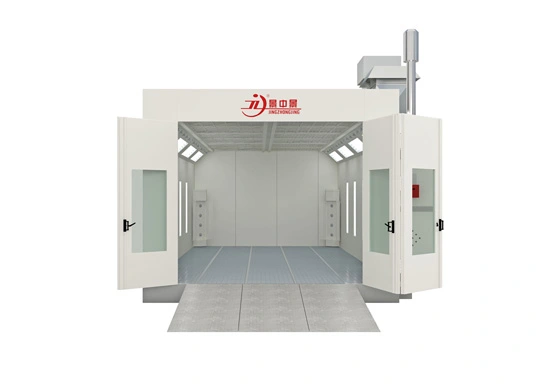

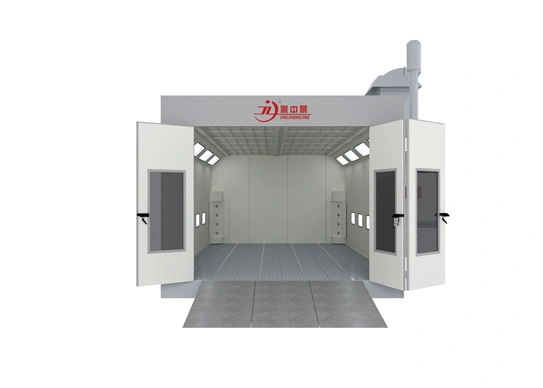

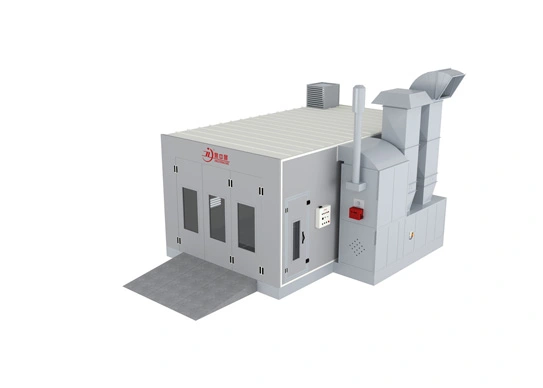

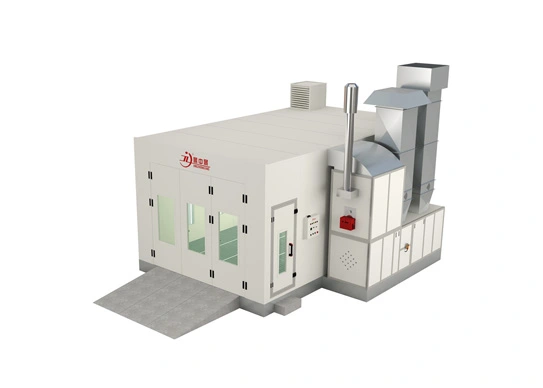

Vehicle Spray Booth | |||
Outside Dimension (mm) | 7006 * 5360 * 4150(L*W*H) | Inside Dimension(mm) | 6900* 4000 * 2650(L*W*H) |
Front Door(mm) | 3000*2600 (W*H) | Service Door (mm) | 800*2000(W*H) |
Total Power | 24KW | ||
Cabin System | Wall panel | 50mm EPS sandwich panel, steel sheet thickness: 0.426mm | |
Ceiling panel | 50mm rock-wool sandwich panel | ||
Basement | 300mm depth, full galvanized grids | ||
Ramp | Three pieces 2000*900mm ramps | ||
Glass | 5mm safety tempered glass | ||
Windows | Square glass windows | ||
Air Make-up System | Air inlet fan system | 1 * 7.5kw turbo fan | |
Exhausted fan system | 1 * 7.5kw turbo fan | ||
Air capacity | 25000m3/h | ||
Air control method | One manual damper for air inlet and exhausted system | ||
Exhausted ducting | 8 meters air duct, one flop damper and one weather hood | ||
Water-based paint spraying system | Stainless air nozzles | 36pcs | |
Corner dryers | 2 * 0. 18KW motor | ||
Ceiling fan | 2 * 1.5KW, air capacity: 4500m3/h | ||
Purification System | Pre-filter | G3 grade. Pocket filter. | |
Ceiling filter | EU5 / F5 | ||
Floor filter | Green fiber glass filter / G3 grade | ||
Exhausted fan filters | Pocket filter and active carbon | ||
Heating System | Heat exchanger | SUS304 material, argon arc welding. | |
Heating burner: | Riello G20 diesel burner | ||
Heating productivity | 180000Kcal/h | ||
Spray to baking switch | 20N BELIMO brand electrical damper | ||
Chimney ducting | 3 meters stainless ducting and one chimney cap | ||
Max heating temperature | 80℃ | ||
Heating time | 4-6min(20-60℃) | ||
fuel consumption | 6-8Litters /vehicle | ||
Lighting System | Ceiling lights | 8 Units, each 4 x 18W Philips lamps, Total 576 W | |
Side lights | 8 Units, each 2 x 18W Philips lamps, Total 288W | ||
Illumination | 900LUX | ||
Controlling System | Switched control panel | Spraying & baking switch, before baking flash-off, after baking flash off, lighting switch, emergency stop, breakdown alarm, failure alarm | |
Advanced filtration system ensures a dust-free environment, enhancing paint quality and finish.
High-efficiency lighting provides optimal visibility, reducing errors during the painting process.
Temperature and humidity controls maintain ideal conditions for paint application and curing.
Spacious interior accommodates various vehicle sizes, from small cars to large trucks.
