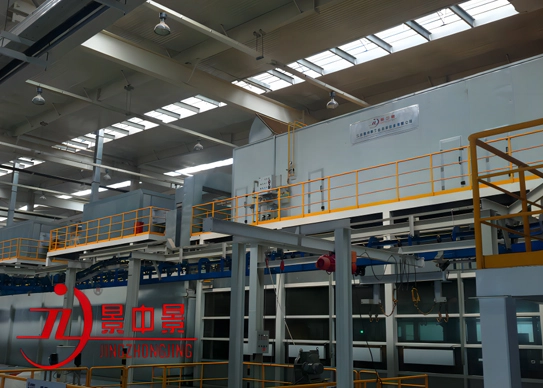

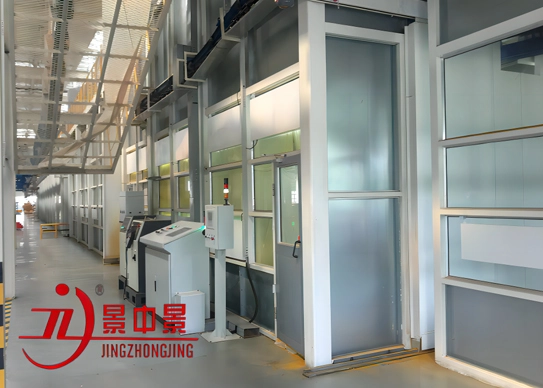

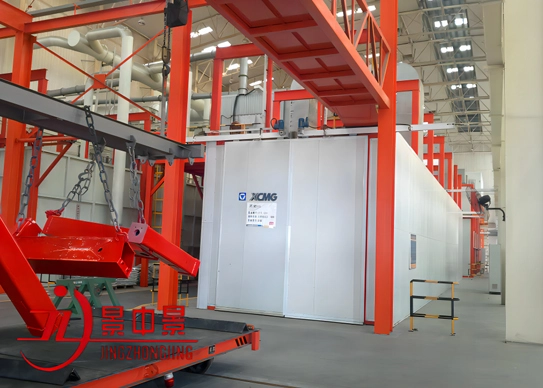

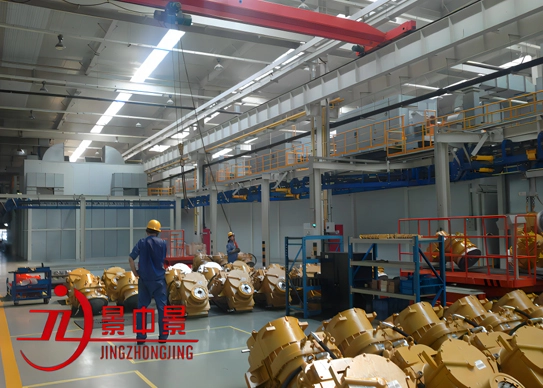

Powder coating production line is a kind of production line which is produced through a series of operation process, and its process is divided into three main stages: pre-treatment, powder coating and heating curing. The application characteristics of powder coating production line include high coating efficiency, economic safety, smooth operation, etc. It is suitable for spraying paint and plastic on the surface of the work piece, especially suitable for single piece or small batch of work piece coating operation. It is especially suitable for single piece or small batch of work piece painting operation. This type of production is widely used in industrial production, and can meet the coating needs of various complex work pieces and provide high-quality coating results.
| Outside Size | 4500x3000x2690mm(L×W×H) |
| Inner size | 4400x2900x2600mm(L×W×H) |
| Wall panel | 2mm thick cold rolled steel sheet with powder coating |
Air Circulation System | 2 sets of 5.5kw 4-72-5A outlay motor fan. Each fan air flow capacity: 7000m%/h Pressure is 2000Pa, speed is 2900r/min |
| Powder recycling system | Filter system is filter cartridge box, 2*4 pcs on each side, total 8pcs, each filter size: 324*900mm, with 8pcs pulse shaking device. Air compressor pressure: 0.6- 0.8MPa, valve pressure: 0.6Mpa. Finial powder recycling rate is 94% |
| Sliding door | Two sets of sliding doors for closing the booth after the products go into the booth to avoid powder overflow, size: 2100*2200mm(W*H) |
| Lighting System | Ceiling Light: 2*4 units 18w LED lights |
| Total power | 11kw |
Utilizes electrostatic spray deposition for even coating, ensuring uniform coverage.
Environmentally friendly with minimal waste and no solvents, reducing ecological impact.
Offers a wide range of color and texture options, enhancing aesthetic appeal.
Provides durable, corrosion-resistant finishes suitable for various industrial applications.
