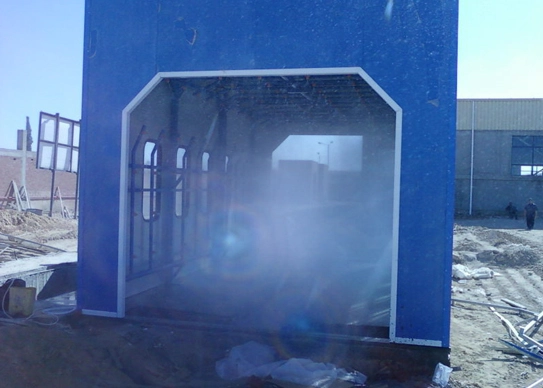

Water Test Booth

The rain test room is an important facility used to simulate the natural rainfall environment and evaluate the performance of products under natural rainfall conditions. It is mainly used to test and evaluate the waterproof sealing performance of automobiles and electrical products under various adverse weather conditions. The waterfall spray booth can simulate the rainfall environment of different intensity and Angle to ensure the accuracy and reliability of the test results. Depending on customer requirements, the water test booth can be customized with special test functions, such as simulating acid rain, lightning and high temperatures. The waterfall spray booth is designed to be beautiful, durable and safe to avoid leakage and rust. Modern water test booths are also equipped with efficient control systems.

Water Test Booth Specification


tem

Technical Parameters

External dimension

7006×6800×3600mm(L×W×H)

Internal dimension

6900×3300×2800mm(L×W×H)

Room body

Square steel structure

Side wall

50mm thickness EPS panel(0.5mm thickness color steel)

Roof panel

50mm thickness EPS panel(0.5mm thickness color steel)

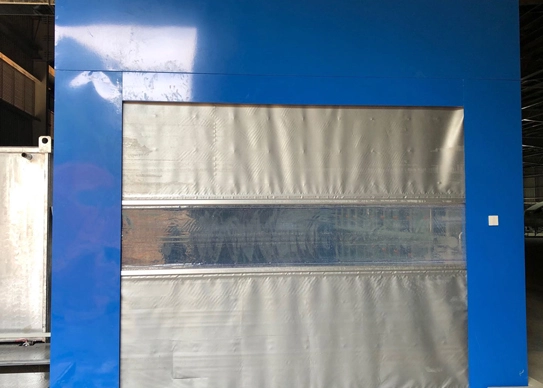

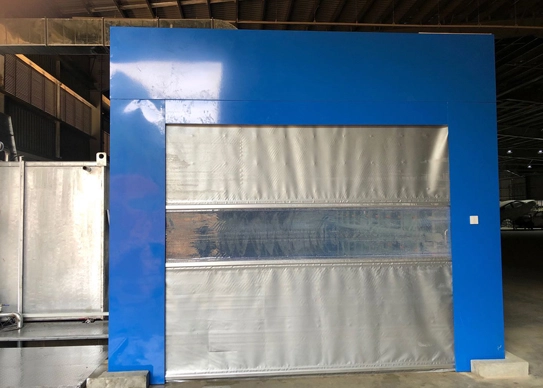

Door structure

Square electric PVC rolling door

Door dimension

3000×2600mm(W×H)

Quantity

2sets

Lighting system

Light

400 LUX

Lighting Qty

Top:8sets×1pcs×40W light. Philip lamp

Waterproof degree

IP65

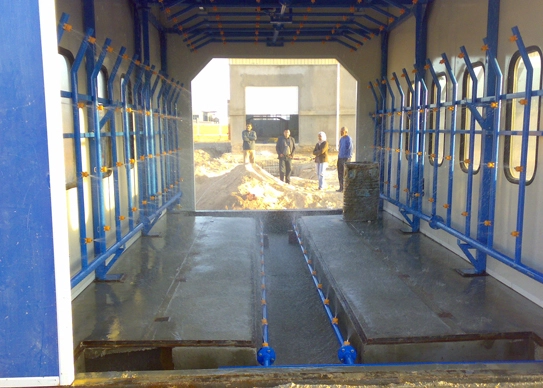

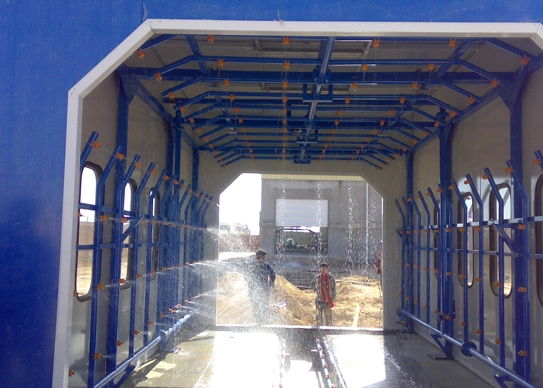

Spraying system

Spray area dimension

6600×3500×2800mm(L×W×H)

Spray pipe plan arrange

Left, right, top and bottom side

Suction pipe diameter

DN80mm

Water supply pipe diameter

DN65mm

Spray branch pipe diameter

DN40mm

Spray pipe material

Galvanization pipe

Qty. of Nozzle

186pcs (with 10pcs backup)

Nozzle Pressure

1.5 bar

Control System

Control style

Switch style control

Total Power

36.5KW

Control Voltage

380V/50HZ


Water Test Booth Features


  1. Leak Detection: Detects vehicle body leaks post-painting using high-pressure water to simulate various weather conditions.

  2. High-Pressure Water Jets: Multiple adjustable jets cover all vehicle areas, simulating different rain types and exposures.

  3. Controlled Environment: Fully enclosed booth with efficient drainage to contain water and maintain a dry production line.
