Aircraft paint rooms are facilities dedicated to the sanding, painting and drying of aircraft exteriors, primarily serving the aerospace industry. Many aircraft paint booth manufacturers specialize in providing customized high-quality aviation painting rooms, including helicopter painting rooms, aviation painting production lines, etc. In addition, the design of the airplane paint booth also takes into account safety and environmental protection. At the same time, in order to ensure the environmental conditions during the painting process, such as temperature and humidity, the painting room is usually equipped with the corresponding control system. In short, the portable aircraft paint booth for sale is not only an important place for the exterior painting of the aircraft, but also an indispensable part of the entire aviation manufacturing and maintenance process.
| External Size | 15000*7350*5550(mm) (L*W*H) |
| Internal Size | 14850*5500*5000(mm) (L*W*H) |

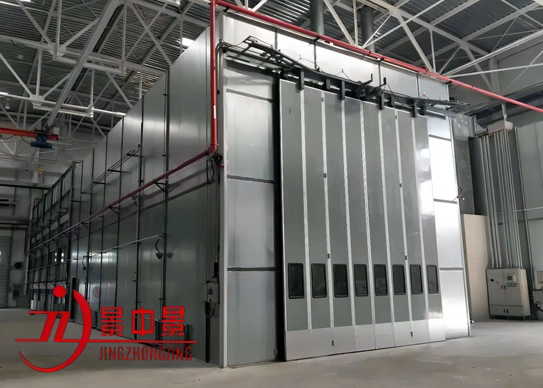

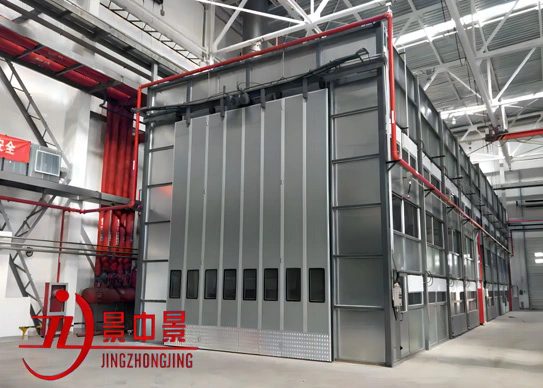

| Entrance door | Aluminum alloy binding framework(thickness:1.8mm), 2 sets folding door size:4400*4500(mm) (W*H). |
| Personal door | 2 set side hung door: 800*2000mm(W*H) |
| Wallboard | 75 mm EPS(epispastics polystyrene) insulation material with S=0.526mm two side steel panel |
| Lighting system | Lamp boxes are 45*fixed on upper two side, with 18 groups*3pcs =54pcs 20w energy saving LED lamps, with 18 groups side light. |
| Air intake system | With 4pcs intake air fans,(centrifugal type, durable cooper motor,explosion-proof), each parameter:YDW4.5L, 4kw, 12500m³/h With 2pc exhaust air fans(centrifugal type, durable cooper motor, explosion-proof), each parameter:Y2160M-4, 11kw, 25000m3/h |
| Cabinet setting | Intake air from upside, downside exhaust wind. Frame is made of tube:50* 50mm, body plate is made of galvanized plate (thickness: 0.8mm) (face the booth, the air cabinet is on the right side) |
| Heating system | Equipped with 2pcs Italian brand diesel burner. The operating temperature:50C 60C. Max.Temperature: 759C. |
| Air duct | Made of galvanized plate,700*700*900. 6 pcs straight, 2 pc elbow. |
| Filtration system | 4 filters: 1. Air inlet with prefilter. 2. Ceiling equipped with CC -G650 type high-efficiency filter, which can effectively filter the 5PM dust particles. 3. With three layers of activated carbon in exhaust cabinet. 4. Outlet with filter cotton. |
| Roof | 50mm EPS(epispastics polystyrene) insulation material with S=0.476 two side steel panel. |
| Basement | Without |
| Control system | Painting, Baking, Temperature Controller, Breakdown Indicator, Power Switch, Emergency Stop Switch, and Time Setting |
| Voltage frequency | 380V 50HZ 3 phase |
| Light intensity | ≥1000luxes |
| Air flow speed | ≥0.25m/s |
| Total power | 40.5kw |
| Remarks | This big size spray paint booth is customized. 0086 1376 0700 38Welcome share your idea or requirements to us, we can provide spray booths with different optional. |
Large-Scale Dimensions: Capable of housing entire aircraft, from small jets to large commercial planes, for complete exterior painting.
Advanced Filtration Systems: Utilizes HEPA filters to ensure a contaminant-free environment, crucial for high-quality finishes.
Temperature and Humidity Control: Features precise climate control to meet the stringent requirements of aircraft paint applications.
