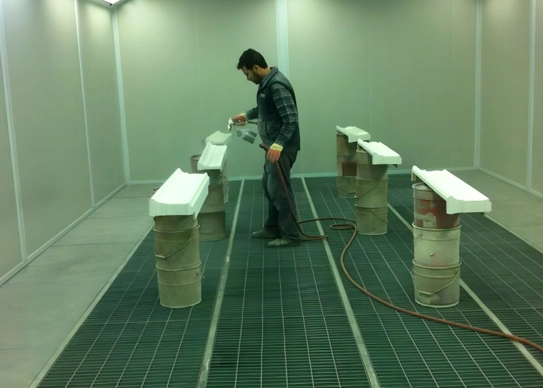

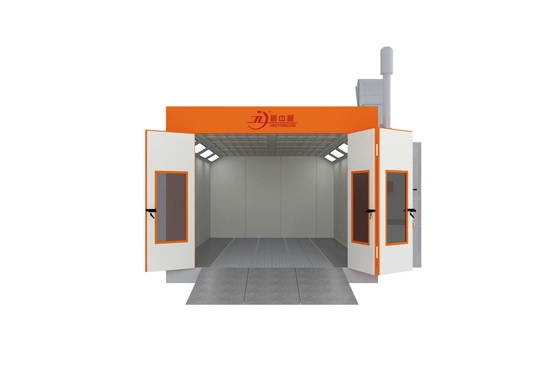

Furniture spray booth for sale is an indispensable part of the furniture manufacturing process, mainly used for painting furniture. First of all, the design of the furniture paint booth needs to take into account the efficiency and safety of the painting operation. Spraying operations can be divided into air spraying, airless spraying, mixed gas spraying and electrostatic spraying and other forms. Being a leading furniture spray booth factory, we ensure that ventilation protection measures are the key to ensure the safety of the painting room, and improving ventilation facilities can effectively improve the protection effect and control pollution. Finally, the application of environmental protection technology is also an important aspect of the design of modern furniture spray booth. In addition, for the treatment of spray paint wastewater, biological treatment technology can also be used to achieve environmental protection discharge standards. Through continuous technological innovation and improvement, the performance and environmental protection level of the furniture paint booth can be effectively improved.

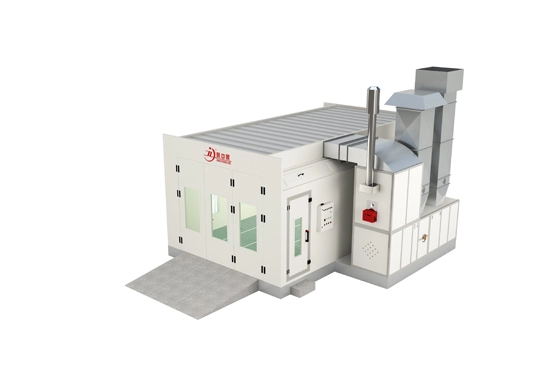

| JZJ Spray Booth Catalouge with Model JZJ-8000-AU | ||||
Outside Dimension (mm) | 7006*5710*3420(L*W*H) | Inside Dimension(mm) | 6900*4000*2650(L*W*H) | |
Front Door(mm) | 3000*2600(W*H) | Service Door (mm) | 800*2000(W*H) | |
Total Power | 17KW | |||
Cabin System | Wall panel | 50mm rock-wool sandwich panel, double face steel sheet thickness: 0.6mm | ||
Ceiling panel | Galvanized steel sheet. | |||
Basement | 300mm depth, middle with grids, side with checkered plates. | |||
Ramp | Three pieces 2000*900mm ramps | |||
Glass | 5mm safety tempered glass | |||
Windows | Square glass windows. | |||
Air Make-up System | Air inlet fan system | 1*7.5kw turbo fan, ABB/Siemens motor | ||
Exhausted fan system | 1*7.5kw turbo fan, ABB/Siemens motor | |||
Air capacity | 25000m3/h | |||
Air control method | Air inlet system and exhausted system, each with 1 manual damper | |||
Air ducting | 8 meters air duct, one flop damper and one weather hood | |||
Purification System | Pre-filter | G3 grade, Pocket filter | ||
Ceiling filter | EU5 / F5 | |||
Floor filter | Green fiber glass filter / G3 grade | |||
Exhausted fan filters | Pocket filter and active carbon | |||
Heating System | Heat exchanger | SUS304 material, argon arc welding. | ||
Heating burner | Riello G20 diesel burner | |||
Heating productivity | 180000Kcal/h | |||
Spray to baking switch | 20N BELLIMO brand Electrical Damper | |||
Chimney ducting | 3 meters stainless ducting and one chimney cap | |||
Max heating temperature | 80℃ | |||
Heating time | 4-6min(20-60℃) | |||
Fuel consumption | 5-6L/vehicle | |||
Lighting System | Ceiling lights | 10 Units, each 4 * 18W LED lamps. Total 720 W | ||
Side lights | 8 Units, each 2 * 18W LED lamps, Total 288W | |||
Illumination | 1000LUX | |||
Controlling System | Switched control panel | Spraying & baking switch, before baking flash-off, after baking flash off, lighting switch, emergency stop, breakdown alarm, failure alarm | ||

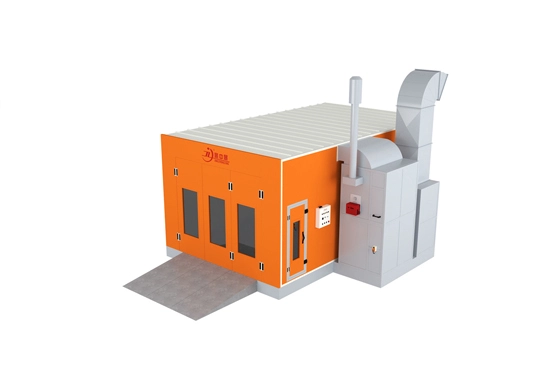

| JZJ Spray Booth Catalouge with Model JZJ-9400 | |||
Outside Dimension (mm) | 7006*5560*3420(L*W*H) | Inside Dimension(mm) | 6900*4000*2650(L*W*H) |
Front Door(mm) | 3000*2600(W*H) | Service Door (mm) | 800*2000(W*H) |
Total Power | 18KW | ||
Cabin System | Wall panel | 50mm EPS sandwich panel, steel sheet thickness:0.426mm | |
Ceiling panel | 0.8mm galvanized steel sheet. | ||
Ramps | Three pieces 2000*900mm ramps | ||
Basement | 300mm depth, middle with grids, side with checkered plates. | ||
Glass | 5mm safety tempered glass | ||
Windows | Square glass windows | ||
Air Make-up System | Air inlet fan system | 2*4kw centrifugal fan | |
Exhausted fan system | 1*7.5KW centrifugal fan | ||
Air capacity | 25000m3/h | ||
Exhausted ducting | 4 meters straight ducting, one 90°elbow and one 45°elbow. | ||
Purification System | Pre-filter | G3 grade | |
Ceiling filter | EU5 / F5 | ||
Floor filter | Fiber glass filter / G3 grade | ||
Exhausted fan filters | Fiber glass filter and active carbon | ||
Heating System | Heat exchanger | SUS304 material, argon arc welding. | |
Heating burner: | RielloG20 diesel burner | ||
Heating productivity | 180000Kcal/h | ||
Spray to baking switch | 20N BELIMO brand electrical damper | ||
Chimney ducting | 3 meters stainless ducting and one chimney cap | ||
Max heating temperature | 80℃ | ||
fuel consumption | 6-8L/vehicle | ||
Lighting System | Ceiling lights | 8 Units, each 4 * 18W LED lamps. Total 576 W | |
Side lights | 8 Units, each 2 * 18W LED lamps, Total 288W | ||
Illumination | 900LUX | ||
Controlling System | Switched control panel | Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm | |
Compact and Efficient Design: Optimized for smaller items, providing efficient use of space and resources.
Fine Particle Filtration: Equipped with fine filters to capture overspray and ensure a clean finish.
Adjustable Spray Systems: Features adjustable nozzles and spray patterns to cater to different furniture designs and materials.
