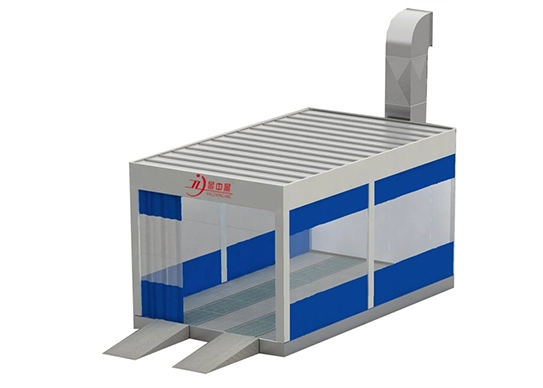

Paint Preparation Station

The paint preparation station is a comprehensive work area ‌designed to provide the necessary equipment and material preparation for the coating production line. ‌Its main tasks include surface pretreatment equipment, painting equipment, mechanized conveying equipment, dust-free constant temperature and humidity air supply equipment, ‌and other auxiliary equipment, including an electronic control system and other necessary auxiliary equipment, to ensure the smooth operation of the whole painting line. In addition, the vehicle coating line equipment preparation room also needs to carry out daily maintenance and maintenance of equipment, including but not limited to the vibration state monitoring of the motor and lubrication performance analysis, ‌to ensure the normal operation of the equipment and extend the service life.

Specification of Paint Preparation Station


Outside Size (mm)7500x3550×3100 (L×W×H)
Inside Size (mm)S300x3450x2650 (L×W×H)
Plenum Dimension(mm)6300x3450x450 (L×W×H)

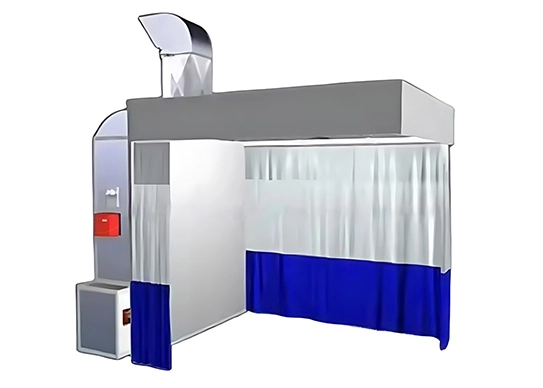

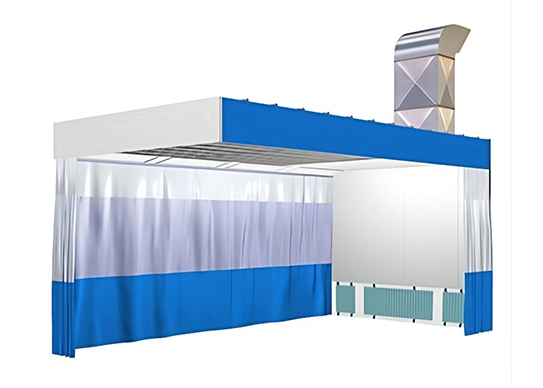

Wall panelBack wall is 50mm EPS colorful steel panels and the others are PVC soft curtains
BasementCan with or Without basement.
Intake and Exhaust System1 unit 5.5KW double intake centrifugal fan, model YDW-4.5S, air capacity:15500m3/h, electric damper for exhausting
Filitering SystemPre-filter, high efficiency filter, exhaust fiberglass filter
RoofGalvanized steel panels
Lighting SystemCeiling Lights 8 units*4pcs= 32pcs 36W, with electronic ballasts.
Control systemFan operation switch
Lighting switch
Emergency Stop
Install WaySuspending steel hook from roof of building or steel column supporting
Total Power6.7KW


Features of Paint Preparation Station


  1. Dust-Free Environment: Advanced air filtration and positive pressure maintain a clean, dust-free space for high-quality paint application.

  2. Ergonomic Design: Ergonomic workstations and organized tools enhance efficiency and reduce worker fatigue during preparation tasks.

  3. Lighting and Ventilation: High-intensity lighting and effective ventilation ensure visibility and safety, removing fumes and dust.
