Filter For Spray Booth

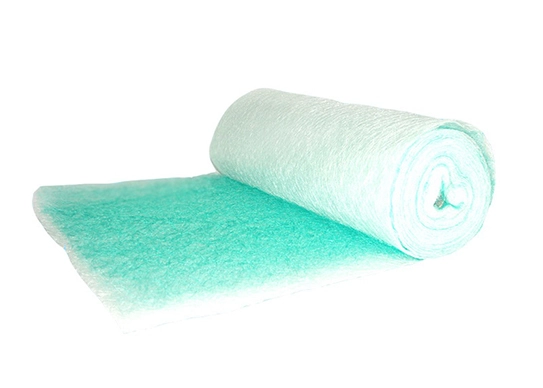

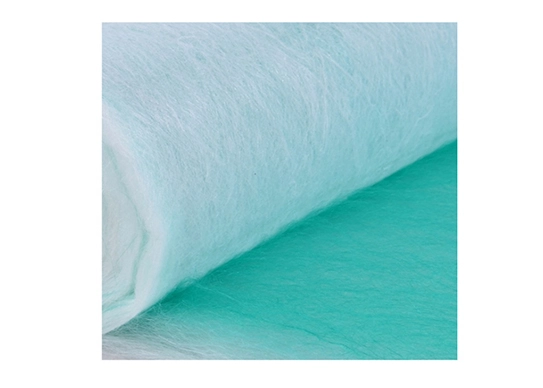

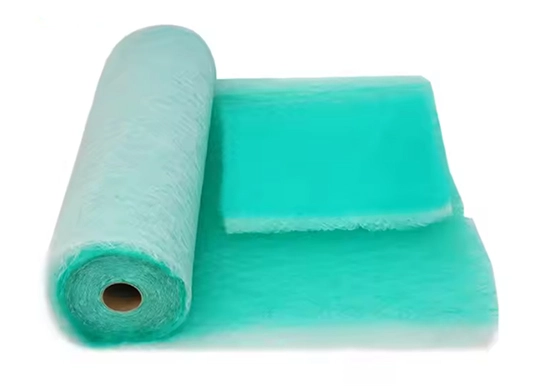

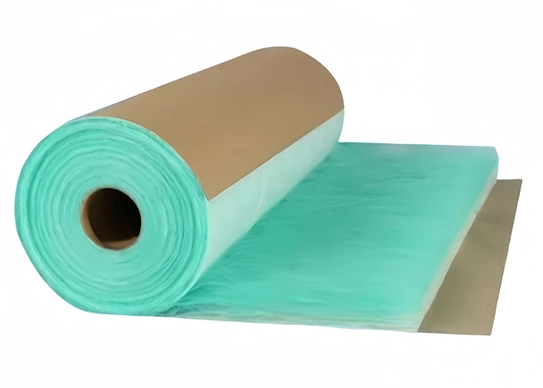

Spray booth filters and supply are essential materials used to capture and treat paint fog produced in the spray painting process, their main function is to remove paint fog particles in the air by physical interception, so as to protect the environment and equipment. Auto paint booth filters are usually composed of high-strength continuous monofilament glass fibers, which can effectively store paint mist dust. The filter material of the filter cotton is green and white, and the green side is the air facing side, which has the characteristics of elasticity and low pressure loss. These specialized filters play a key role in the spray painting process, which not only improves the removal efficiency of paint mist, but also reduces environmental pollution.

Auto Paint Booth Filters Specification


Filter For Spray Booth
ModelAverage arrestanceDimensions WxL (mm)Media Roll Thickness (mm)Velocity (m/s)Pressure drop (Pa)Heat resistanceMedia
JZJ-50-A90~95500x20000502.530Max. 180“CGlass fiber
JZJ-50-B90~95750x20000502.530Max. 180“CGlass fiber
JZJ-50-C90~951000x20000502.530Max. 180“CGlass fiber
JZJ-50-D90~951500x20000502.530Max. 180“CGlass fiber
JZJ-70-A93~97500x20000702.540Max. 180“CGlass fiber
JZJ-70-B93~97750x20000702.540Max. 180“CGlass fiber
JZJ-70-C93~971000x20000702.540Max. 180“CGlass fiber
JZJ-70-D93~971500x20000702.540Max. 180“CGlass fiber
JZJ-100-A98-99500x200001002.560Max. 180“CGlass fiber
JZJ-100-B98-99750x200001002.560Max. 180“CGlass fiber
JZJ-100-C98-991000x200001002.560Max. 180“CGlass fiber
JZJ-100-D98-991500x200001002.560Max. 180“CGlass fiber


Auto Paint Booth Filters Features


  1. Filters for spray booths are designed to capture overspray particles, ensuring a clean working environment and preventing contamination of the painted surface, which is vital for achieving a high-quality finish.

  2. High-efficiency particulate air (HEPA) filters are often used in spray booths to remove fine particles from the air, providing superior filtration and maintaining optimal air quality within the workspace.

  3. Easy-to-replace filter cartridges are a key feature in spray booths, allowing for quick maintenance and ensuring that the filtration system remains effective, thereby extending the lifespan of the booth and its components.
