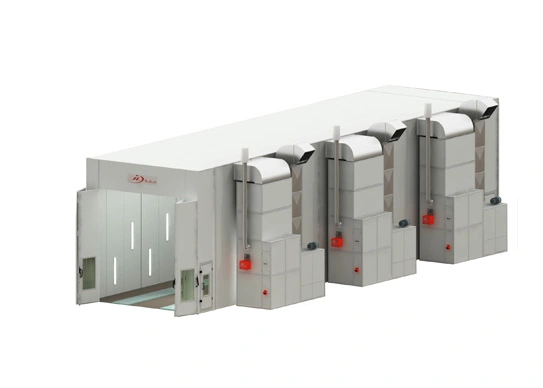

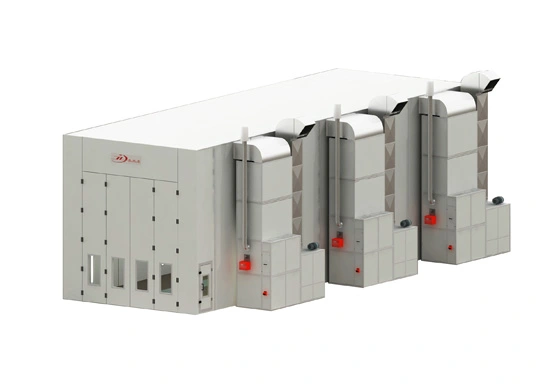

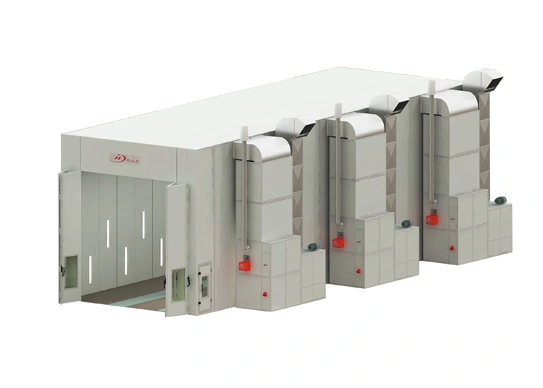

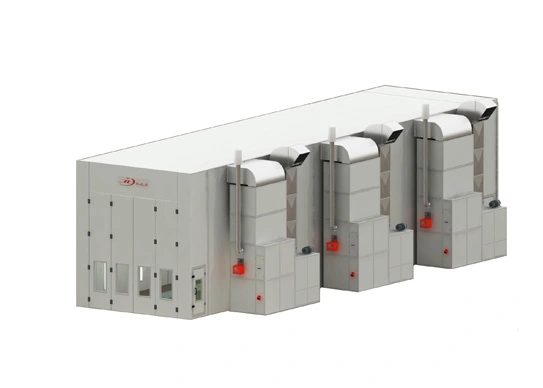

Marine Spray Booth

A marine spray painting room is a kind of equipment specially designed for painting ships or other large objects. It provides a controlled environment, can meet the requirements of temperature, ‌humidity, illumination, and air cleanliness during painting, and can also deal with paint fog and organic waste gas generated during painting to ensure environmental protection. This marine spray booth is widely used in ship, automobile, furniture, and other large object painting operations to ensure painting quality while also meeting environmental protection requirements.

Specification of Marine Spray Booth


Marine Spray Booth

Outside Dimension (mm)

20156*7006*5800(L*W*H)

Inside Dimension(mm)

20000*5000*5000(L*W*H)

Front Door(mm)

4800*4500(W*H) 4 folds

Service Door (mm)

800*2000(W*H)*2

Total Power

117KW

Cabin System

Wall panel

75mm EPS sandwich panel, steel sheet thickness: 0.6mm

Ceiling panel

50mm rock-wool sandwich panel

Basement

Dig 2 row of pits basement

Windows

5mm safety tempered glass

Air Make-up

System

Air inlet fan system

6*9kw centrifugal fan

Exhaust fan system

3*22kw belt drive centrifugal fan

Total air inlet capacity

134000m3/h

Total air exhaust capacity

129000m3/h

Air flowing speed

0.35m/s in empty booth

Air capacity control

Air inlet system and exhausted system, each with 1 manual damper

Exhaust duct

Each exhaust fan with 1*6 meters straight ducting, one 90°elbow and one 45°elbow.

Purification

System

Pre-filter

G3 grade

Ceiling filter

EU5 / F5

Floor filter

Green fiber glass filter / G3 grade

Exhausted fan filters

Fiber glass filter and active carbon

Heating

System

Heat exchanger

SUS304 material, argon arc welding.

Heating burner:

3sets Riello RG5S diesel burner

Heating productivity

260000Kcal/h*3

Spray to baking switch

20N BELIMO brand electrical damper

Chimney ducting

Each heating system with 1* 6 meters stainless ducting and one chimney elbow

Max heating temperature

80℃

Fuel consumption

10-15L/vehicle

Lighting

System

Ceiling lights

26 Units, each 4 * 18W LED lamps. Total 1872 W

Side lights

26 Units, each 2 * 18W LED lamps. Total 936 W

Illumination

900LUX

Controlling

System

Switched control panel

Spraying & baking switch, before baking flash-off, after baking flash off, lighting switch, emergency stop, breakdown alarm, failure alarm


Features of Marine Spray Booth


  1. Corrosion-Resistant Materials: Constructed with materials that resist saltwater and marine conditions, ensuring longevity.

  2. High-Capacity Ventilation: Designed to handle the large volumes of air required for marine vessel painting.

  3. Customizable Configurations: Flexible design options to accommodate various sizes and shapes of marine vessels.
