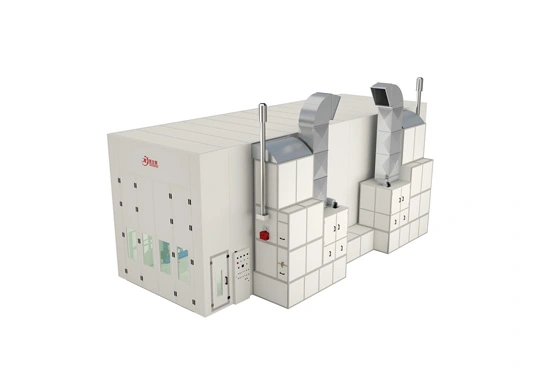

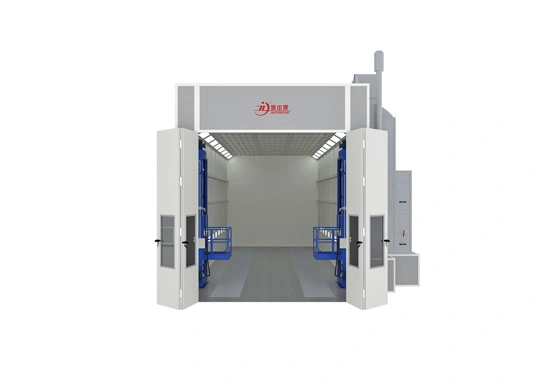

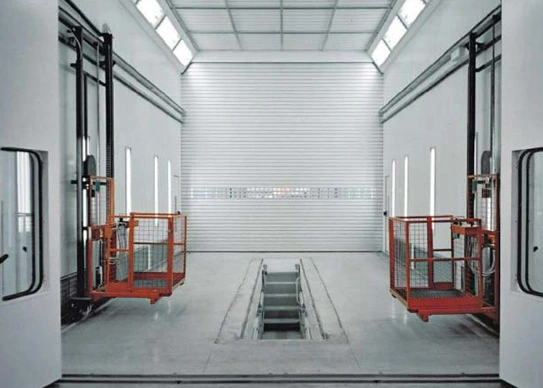

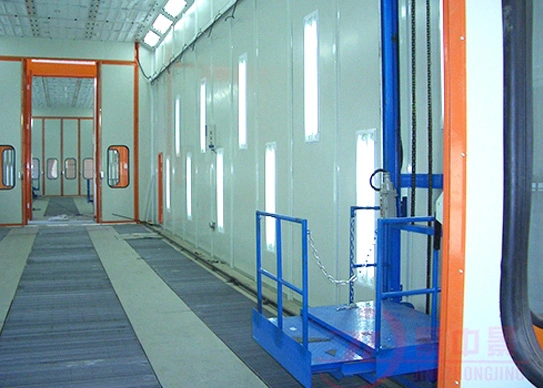

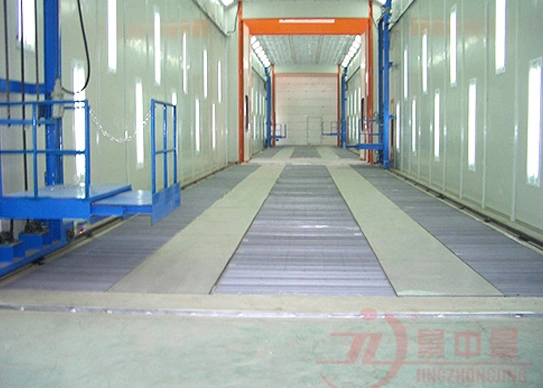

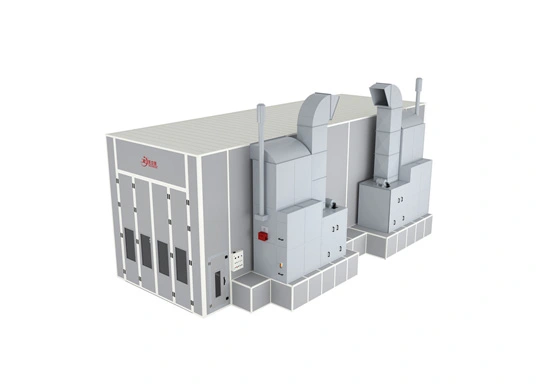

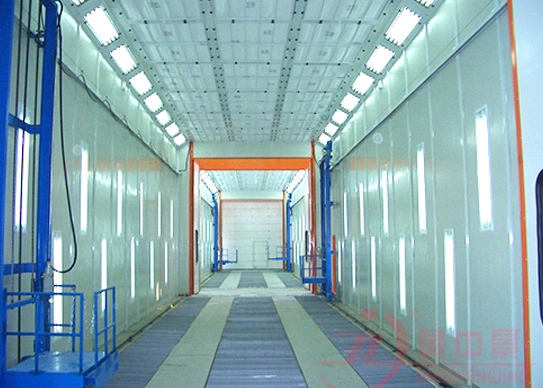

Bus Spray Booth

Bus paint booth is specialized equipment for painting and baking large vehicles such as buses, often referred to as an automotive paint booth. This bus spray booth adopts mechanical control, significantly improving spraying efficiency and paint surface quality while providing a good working environment and safety performance. The auto buses truck paint booth is suitable for painting and baking all kinds of large parts, hardware, large automobiles, and buses. It is especially suitable for the painting and baking needs of large vehicles such as buses. Through its high efficiency, safety, and environmental protection features, the large spray paint booth for bus provides great convenience for spraying paint on buses and other large vehicles. The paint booth truck bus spray booth has become indispensable equipment in the modern auto repair and beauty industry.

Bus Spray Booth Specification


Bus Spray Booth

Outside Dimension (mm)

15156*6906*5800(L*W*H)

Inside Dimension(mm)

15000*5000*5000(L*W*H)

Front Door(mm)

4000*4500(W*H)

Service Door (mm)

800*2000(W*H)*2

Total Power

71KW

Cabin Dystem

Wall panel

75mm EPS sandwich panel, steel sheet thickness: 0.6mm

Ceiling panel

50mm rock-wool sandwich panel

Basement

Dig 2 rows of pits basement

Glass

5mm safety tempered glass

Air Make-up

System

Air inlet fan system

4*7.5kw belt drive centrifugal fan

Exhausted fan system

2*18.5kw belt drive centrifugal fan

Air capacity for fresh air

72000m3/h

Air capacity for exhausted air

70000m3/h

Air control method

Air inlet system and exhausted system, each with 1 manual damper

Exhausted ducting

Each exhaust fan with 1*6 meters straight ducting, one 90°elbow and one 45°elbow.

Purification

System

Pre-filter

G3 grade

Ceiling filter

EU5 / F5

Floor filter

Green fiber glass filter / G3 grade

Exhausted fan filters

Fiber glass filter and pocket filter

Heating System

Heat exchanger

SUS304 material, argon arc welding.

Heating burner:

2sets Riello RG5S diesel burner

Heating productivity

260000Kcal/h*2

Spray to baking switch

20N BELIMO brand electrical damper

Chimney ducting

Each heating system with 1* 6 meters stainless ducting and one chimney elbow

Max heating temperature

80℃

fuel consumption

10-15L/vehicle

Lighting System

Ceiling lights

20Units, each 4 x 18W LED lamps ,Total 1440W

Side lights

20Units, each 2 X18W LED lamps, Total 720W

Illumination

900LUX

Controlling

System

Switched control panel

Spraying & baking switch, before baking flash-off, after baking flash off, lighting switch, emergency stop,

breakdown alarm, failure alarm


Bus Spray Booth Features


  1. Extended Length and Width: Specifically designed to accommodate the larger dimensions of buses, ensuring full coverage.

  2. Energy-Efficient Systems: Utilizes energy-efficient fans and lighting to reduce operational costs.

  3. Rapid Curing Technology: Features advanced curing systems to speed up the drying process, increasing throughput.
