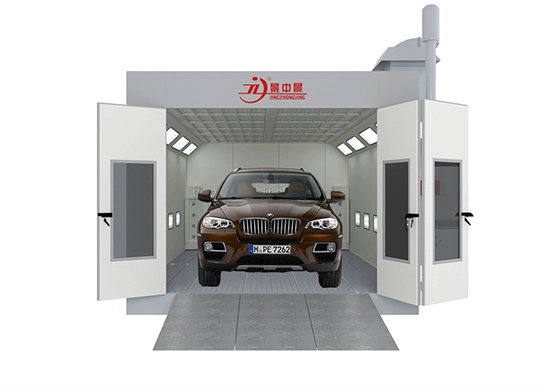

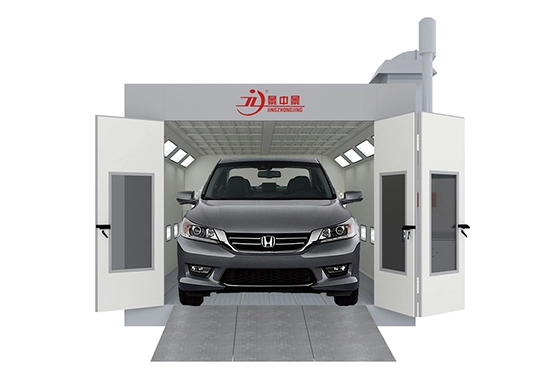

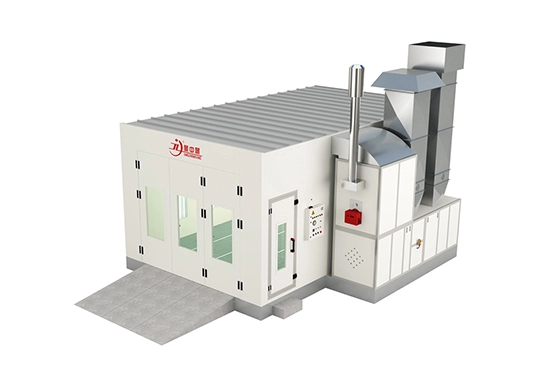

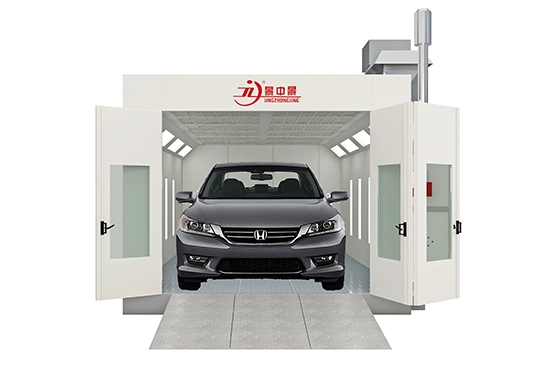

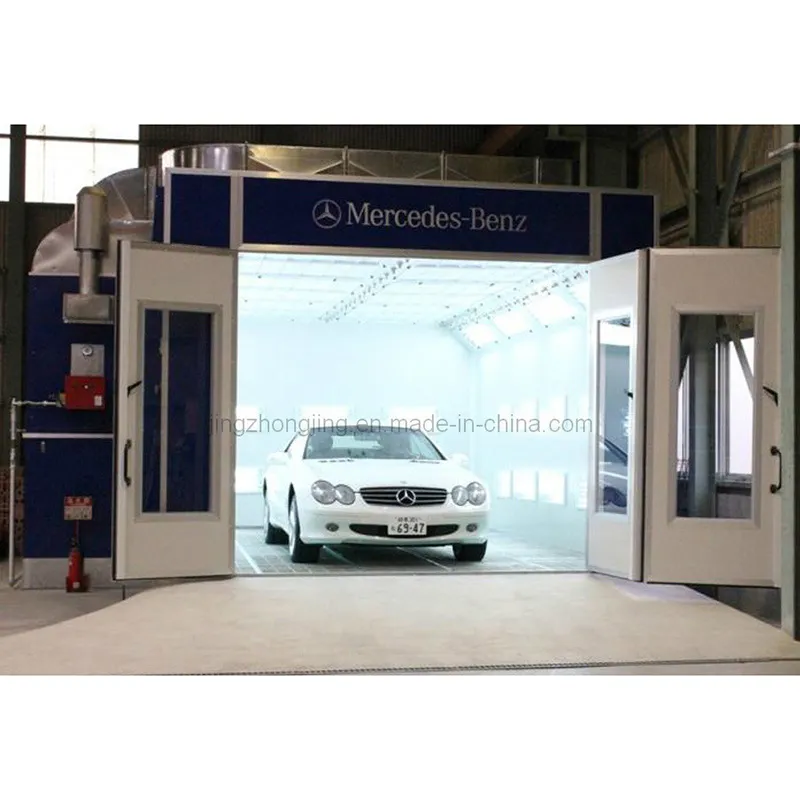

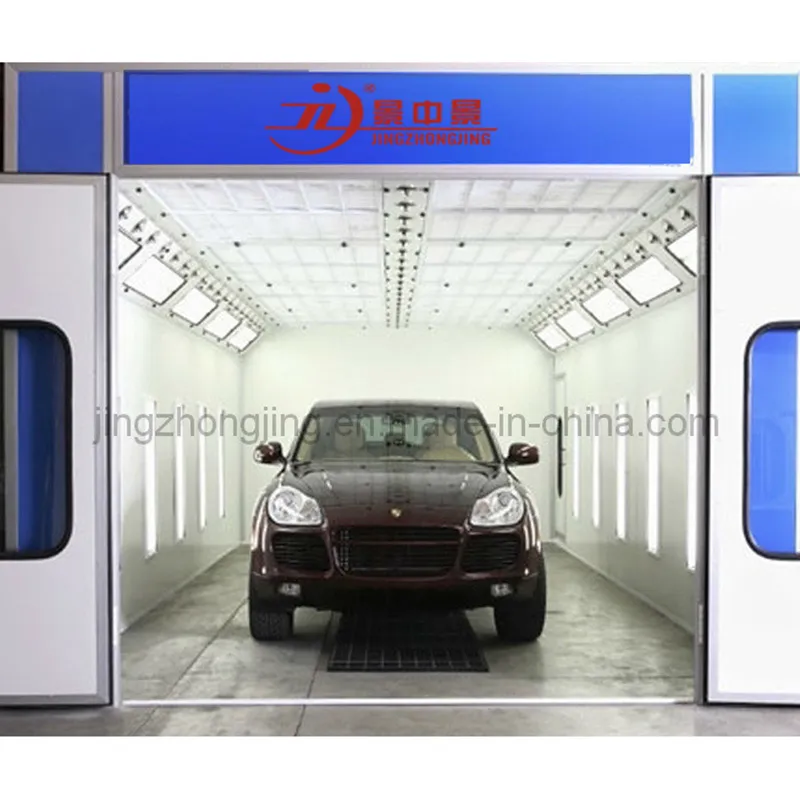

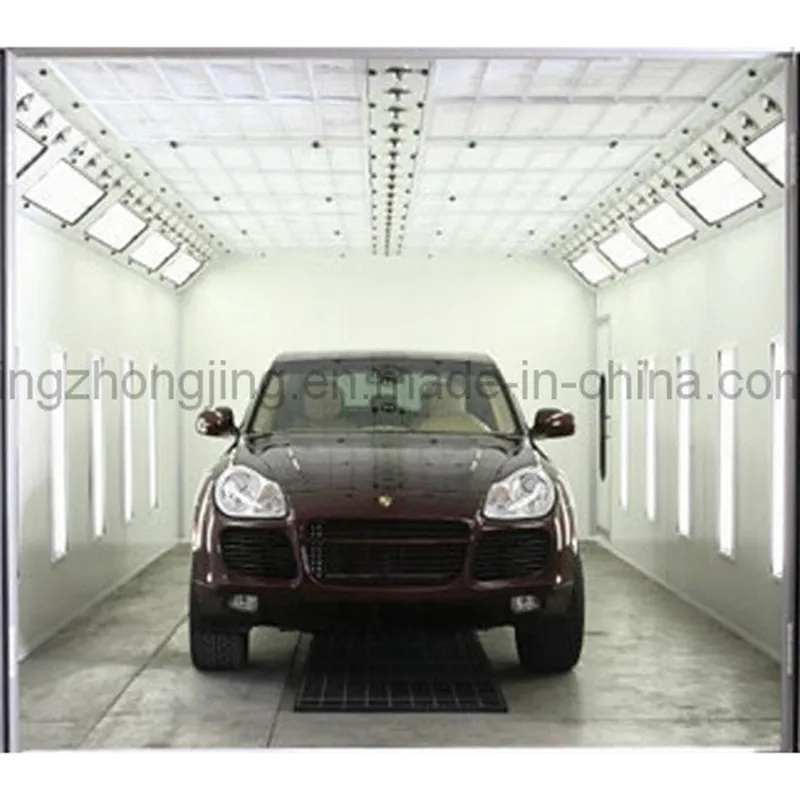

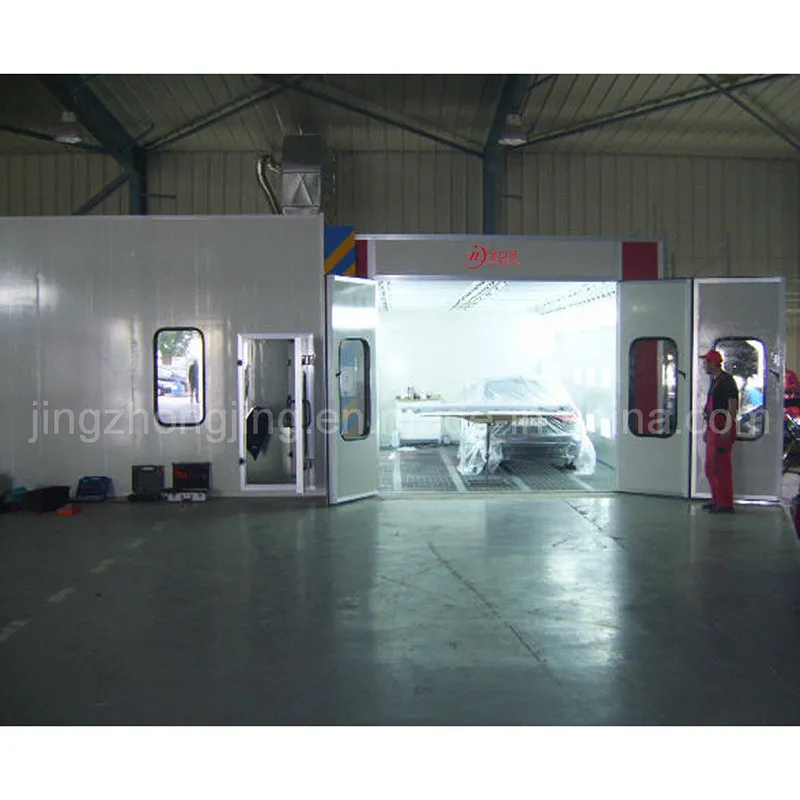

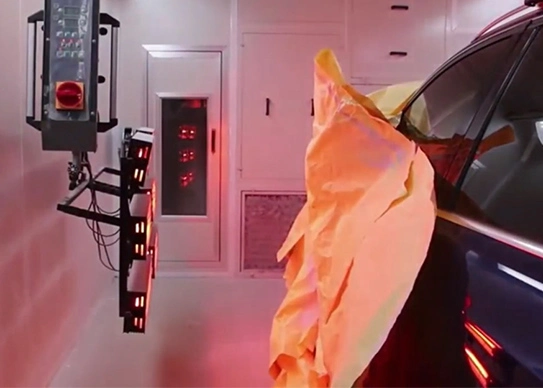

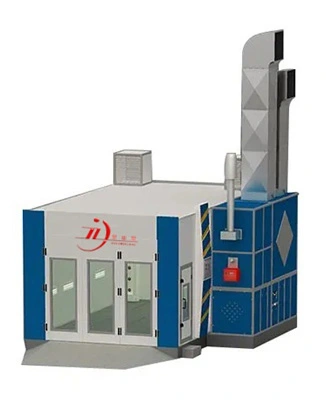

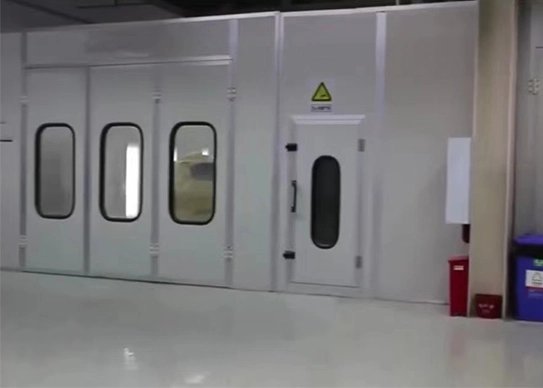

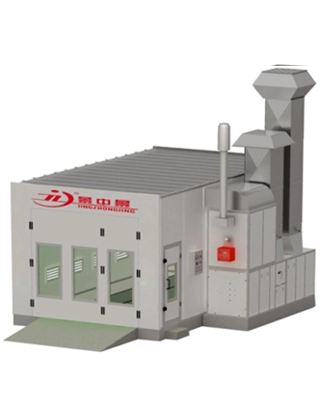

Small automotive spray booth is a specialised equipment for spraying automotive surfaces, its design and functions are mainly focused on improving the efficiency and quality of spraying, while ensuring the safety of the operators and the cleanliness of the working environment. Small automotive spraying room adopts mechanical control, which can save space and is easy to use. At the same time, it can be used to force drying of primer and topcoat, which can speed up the working rhythm and it improves the working efficiency and coating quality.
Car Spray Booth | ||||
Outside Dimension (mm) | 7006*5360*3480(L*W*H) | Inside Dimension(mm) | 6900*4000*2650(L*W*H) | |
Front Door(mm) | 3000*2600(W*H) | Service Door (mm) | 800*2000(W*H) | |
Total Power | 19KW | |||
Cabin System | Wall panel | 50mm rock-wool sandwich panel, steel sheet thickness: 0.6mm | ||
Ceiling panel | Galvanized steel sheet. | |||
Basement | 300mm depth, full galvanized grids | |||
Ramp | Three pieces 2000*900mm ramps | |||
Glass | 5mm safety tempered glass | |||
Windows | Square glass windows. | |||
Air Make-up System | Air inlet fan system | 1*7.5kw turbo fan, proof-explosion ABB/Siemens motor,Ex rated | ||
Exhausted fan system | 1*7.5kw turbo fan, proof-explosion ABB/Siemens motor,Ex rated | |||
Air capacity | 25000m3/h | |||
Air flowing speed | 0.3m/s in empty booth | |||
Air control method | Air inlet system and exhausted system, each with 1 manual damper | |||
Air ducting | 8 meters air duct, one flop damper and one weather hood | |||
Purification System | Pre-filter | G3 grade, Pocket filter | ||
Ceiling filter | EU5 / F5 | |||
Floor filter | Green fiber glass filter / G3 grade | |||
Exhausted fan filters | Pocket filter and active carbon | |||
Heating System | Heat exchanger | SUS304 material, argon arc welding. | ||
Heating burner: | Riello G20 diesel burner | |||
Heating productivity | 180000Kcal/h | |||
Spray to baking switch | 20N BELLIMO brand Electrical Damper | |||
Chimney ducting | 3 meters stainless ducting and one chimney cap | |||
Max heating temperature | 80℃ | |||
Heating time | 5-6min(20-60℃) | |||
fuel consumption | 6-8L/vehicle | |||
Lighting System | Ceiling lights | 8 Units, each 4 * 18W LED lamps. Total 576 W | ||
Side lights | 8 Units, each 2 * 18W LED lamps, Total 288W | |||
Illumination | 900LUX | |||
Controlling System | Switched control panel | Spraying & baking switch, before baking flash-off, after baking flash off, lighting switch, emergency stop, breakdown alarm, failure alarm | ||
Compact and Versatile: Ideal for a wide range of car sizes, from compact cars to SUVs.
High-Quality Filtration: Equipped with multi-stage filters to ensure a dust-free environment for a flawless finish.
User-Friendly Controls: Features intuitive control panels for easy operation and precise adjustments.
