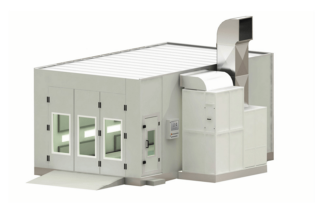

Economical Spray Booth Jzj-9200 From China
Share This Product:
  • DESCRIPTION
  • SPECIFICATION
  • Model NO.: JZJ-9200
  • Certification: CCC, CE, ISO9001
  • Brand: Jzj
  • Airflow Direction: Fully Undershot-type
  • Paint Mist Treatment: Dry-type
  • Trademark: JZJ
  • HS Code: 8419899090
  • Type: Spraying and Baking Spray Booth
  • Substrate: Steel
  • Coating: Painting
  • Heating Mode: Diesel
  • Condition: New
  • Origin: Yancheng Jiangsu

Outside Dimension (mm)

7006*5556*3450(L*W*H)

Inside Dimension(mm)

6900*4000*2650(L*W*H)

Front Door(mm)

3000*2600(W*H)

Service door (mm)

1800*650(W*H)

Total Power

10KW

Cabin system

Wall panel

50mm EPS sandwich panel, steel sheet thickness: 0.426mm

Basement

300mm depth, two rows grids and three rows checkered plates.

Ceiling panel

0.8mm Galvanized steel sheet.

Ramps

Two pieces 2000*600mm ramps

Glass

4mm safety tempered glass

Windows

Rubber sealed glass window

Air Make-up System

Air Inlet fan system

2*4kw centrifugal fan

Exhausted fan system

For option

Ai capacity

24000m3/h

Air Flowing speed

0.25m/s in empty booth

Exhausted ducting

4meters straight ducting, one 90°elbow and one 30°elbow.

Purification System

Pre-filter

G3 grade

Ceiling filter

EU5 / F5

Floor filter

fiber glass filter / G3 grade

Exhausted fan Filters

fiber glass filter and active carbon

Heating System

Heat Exchanger

SUS304 material, argon arc welding.

Heating burner:

RielloG20 diesel oil burner(gas burner for option)

Heating productivity

180000Kcal/h

Spray to baking switch

20N BELIMO brand electrical damper

Chimney ducting

3 meters stainless ducting and one chimney elbow

Max heating temperature

80ºC

fuel consumption

6-8L/vehicle

Lighting System

Ceiling lights

8 Units, each 4 * 36W Philips lamps. Total 1152 W

Side lights

For option

Illumination

900LUX

Controlling system

Switched control panel

Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm, pressure gauge
